Keysight Technologies B1500A Connection Guide

Keysight B1500A Connection Guide for Wafer Prober, Edition 1 17
Connection Guide for Wafer Prober
Connection for low current measurement

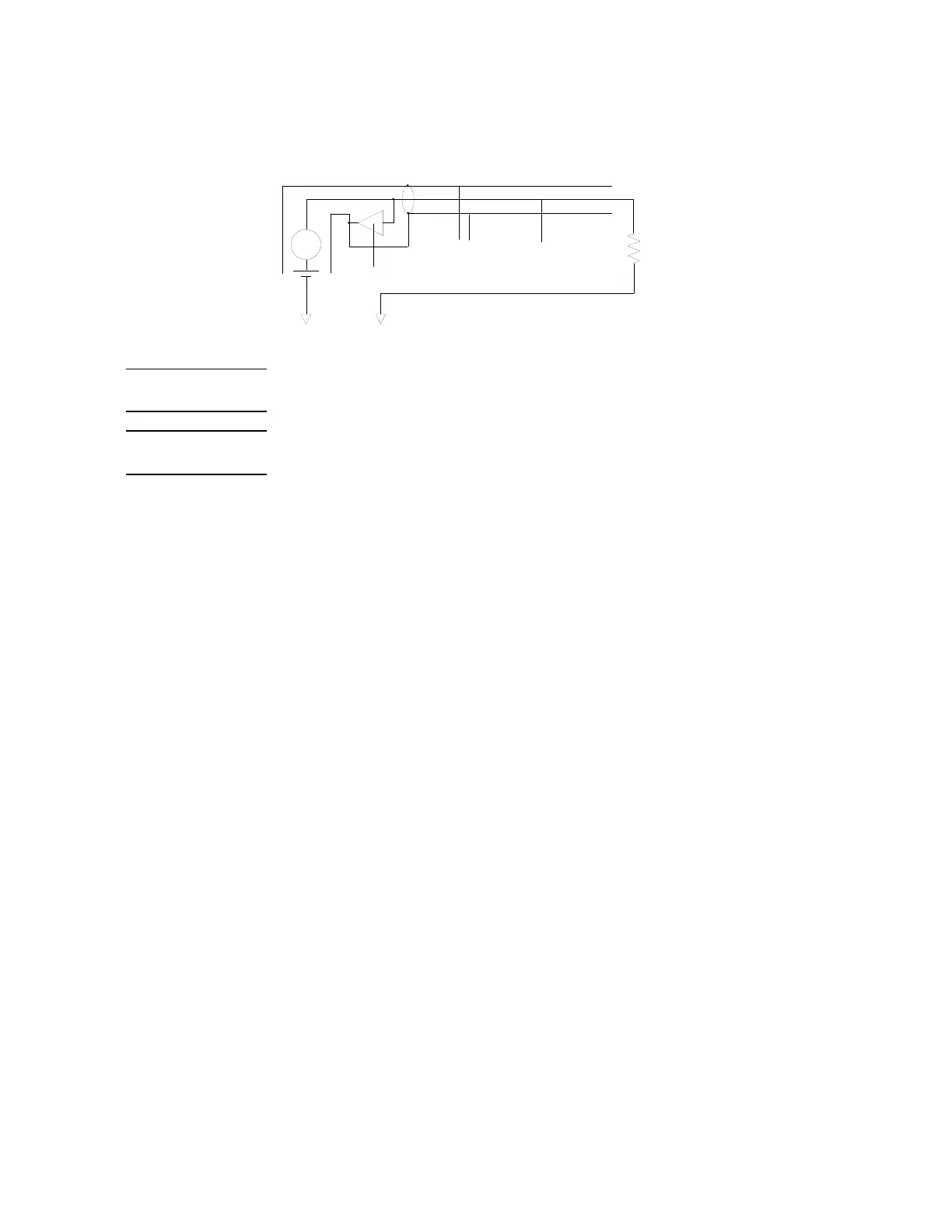

Figure 1-13 Guarding
WARNING Do not touch the guard terminal with bare hands because you may be shocked by
high voltage. The potential of the guard terminal is equal to the output voltage.
CAUTION Never connect the Guard terminal to any other output, including circuit common, chassis
ground, or any other guard terminal. Doing so will damage the B1500A.
A
Buffer
Guard
Force
DUT
