Keysight B1500A Connection Guide for Wafer Prober, Edition 1 27
Connection Guide for Wafer Prober
WGFMU and RSU
• Connect other SMA-SMA cable between other RSU (ex: RSU2) and the Gate RF
probe. And set the Gate RF probe to the appropriate place.

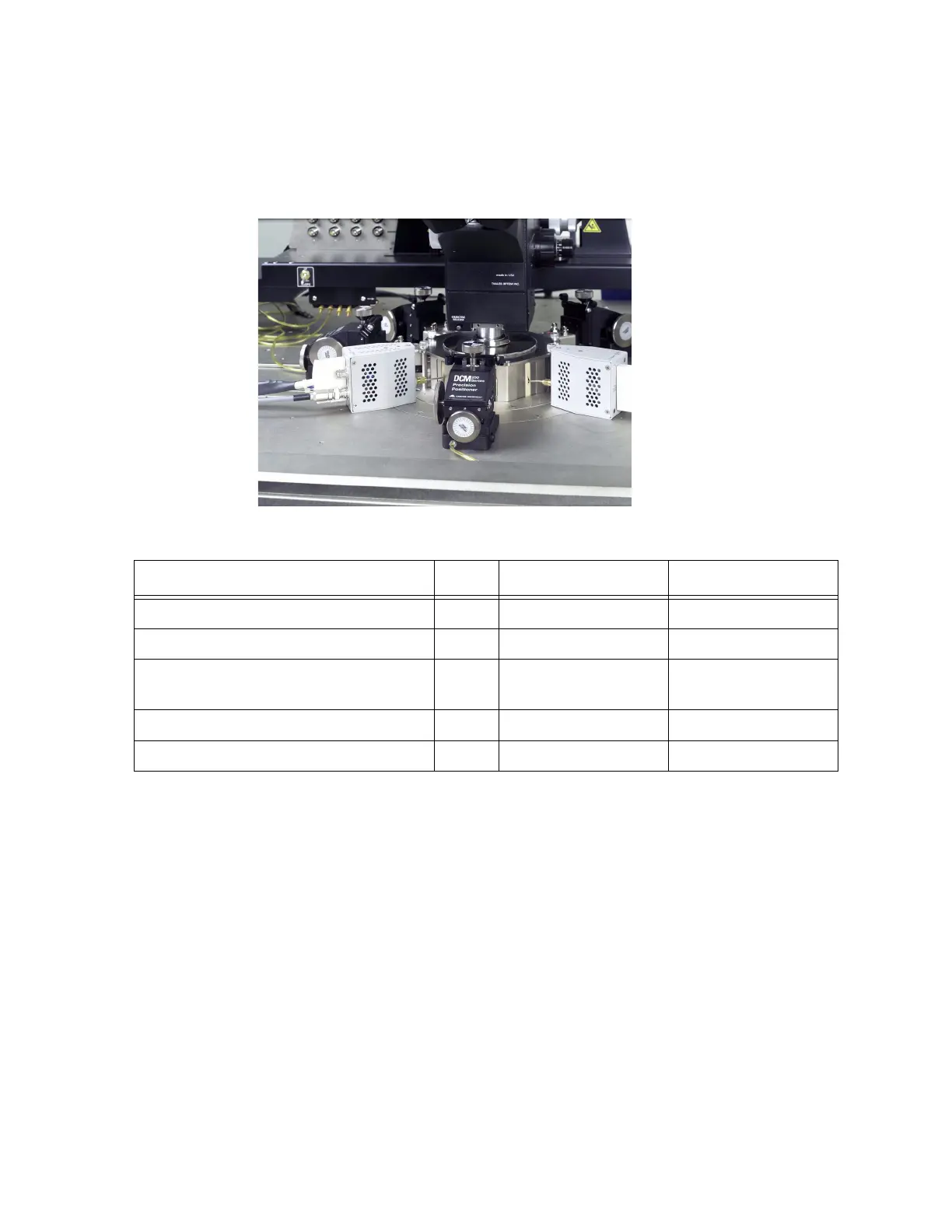

Figure 1-25 RSU connection on the Prober
Table 1-10 Item number information for WGFMU with RF probing connection
Description Qty Option Number Retrofit Kit
WGFMU. Including two RSU 1 B1500A-A30 B1500AU-030
3m cable between WGFMU and RSU (2ea) 1 B1500A-030 B1500AU-W02
SMA - SMA cable (200mm) between RSU
and RF probe
2 B1500A-A3P 16493R-302
Magnet stand for RSU [Recommended] 2 16493R-802 16493R-802
Triaxial cable (3 m) [Optional] 2 16494A-002 B1500AU-T02
