Module 2
Basic Measurement
2-20

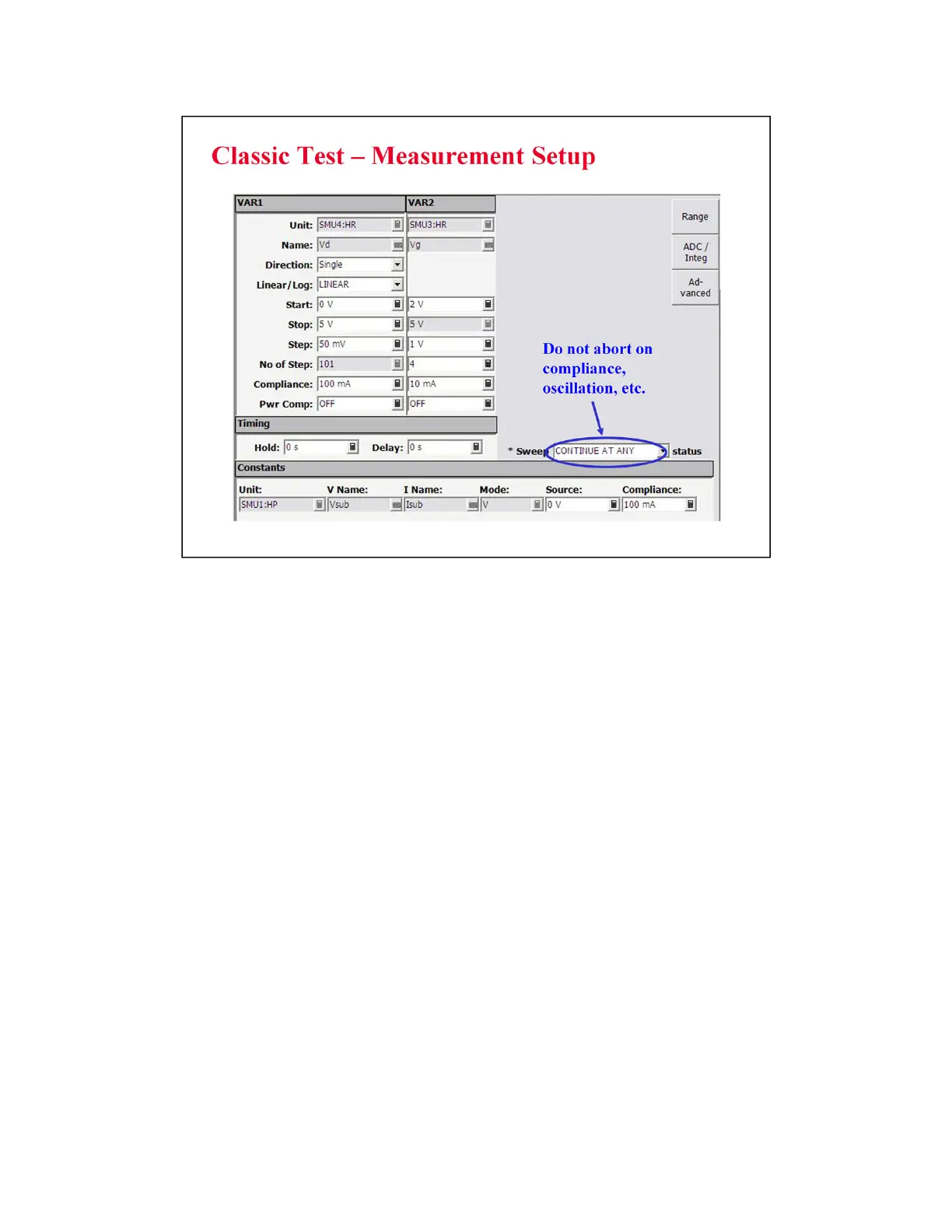

The Measurement Setup screen is shown here. The variables VAR1 and VAR2 define the sweep
parameters. In a case where two sweep parameters are defined, the second parameter (VAR2) is
called the subordinate (secondary) sweep parameter. This means that the primary parameter will be
swept once for each discrete value of the subordinate parameter.
The “Constants” area is used to define non-swept voltage/current sources. This area is used to define
ground references (forcing zero volts) as well as constant biases.
