Keysight Technologies B1500A

Module 2
Basic Measurement
2-21

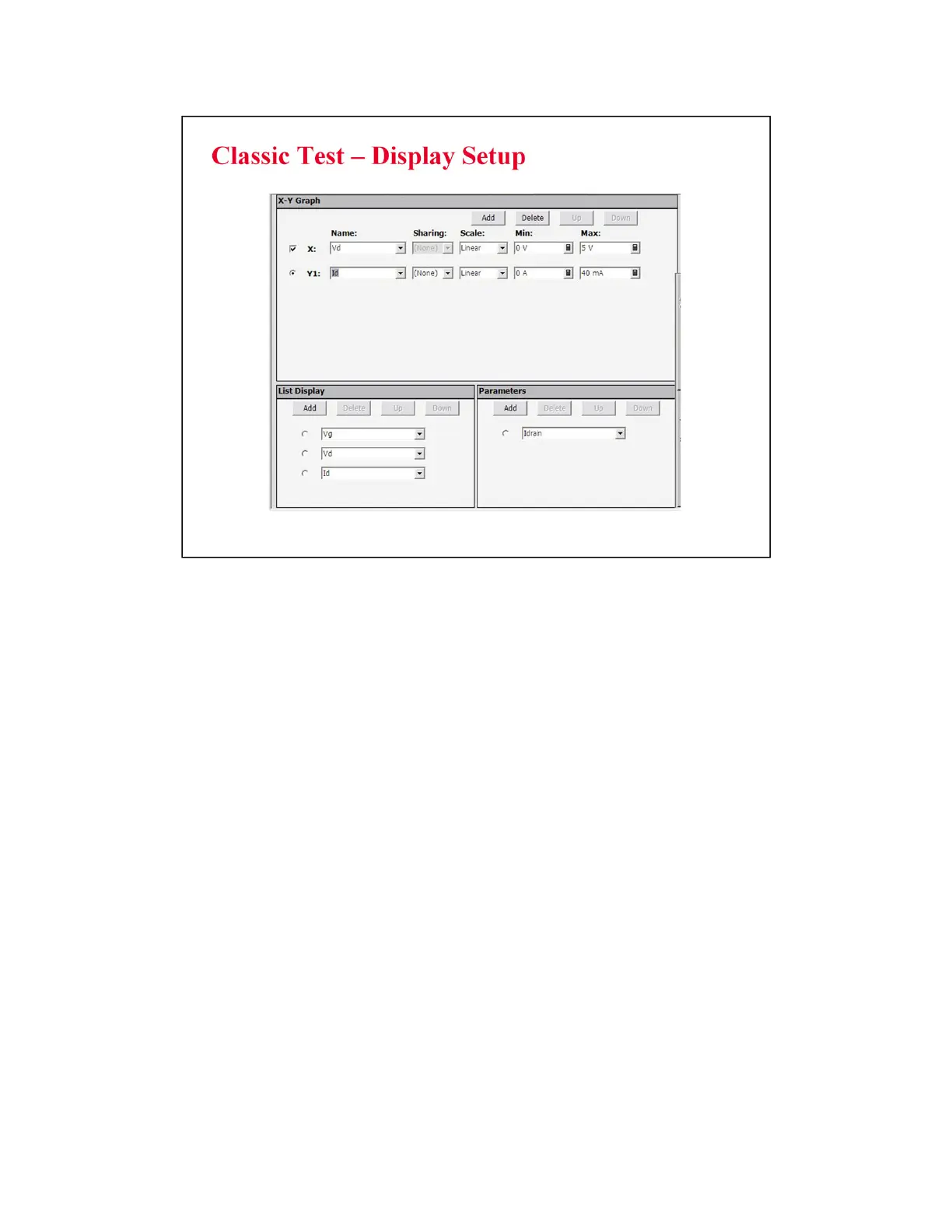

The Display Setup screen allows you to set the X-Y graph axes. The display setup is divorced from
the measurement setup to allow the user to tailor the view to a particular region of interest.
This screen also allows you to set data variable names to be displayed in the List Display and
Parameters areas on the Data Display window which is opened when the measurement is started.
