Module 2
Basic Measurement
2-25
Recall Id-Vd application test setup data.

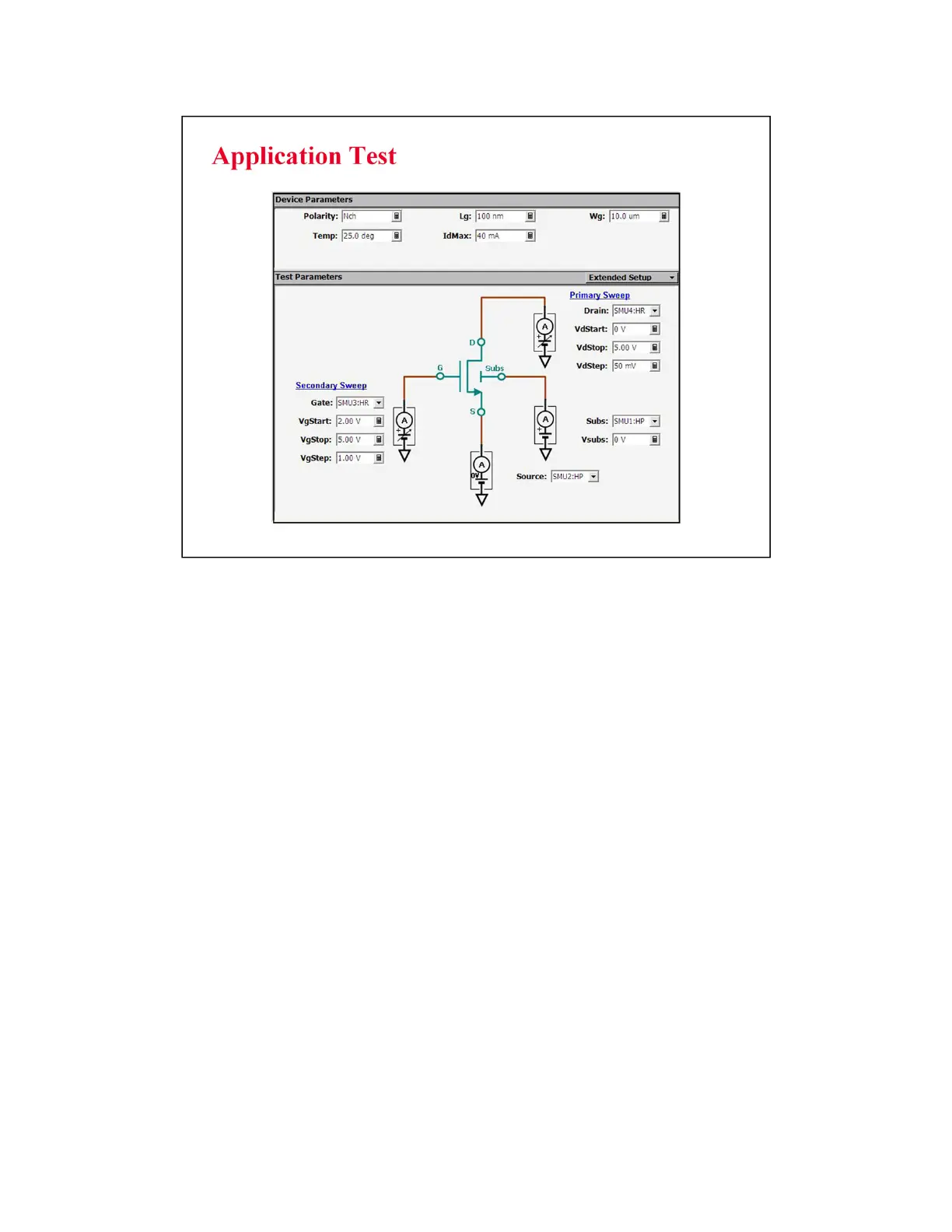

After you get the Id-Vd setup data, you will see the Application Test setup screen as shown.
Test Parameters area shows the device connection information and allows the user to set the SMU
outputs.
Device Parameters area allows the user to set device parameters. In the Id-Vd setup, the device
parameters are polarity, gate length, gate width, temperature, and maximum drain current.
Extended Setup button opens the Extended Setup dialog box shown in the next page.
