LAB 2: Make an Accurate Low Resistance Measurement (continued)

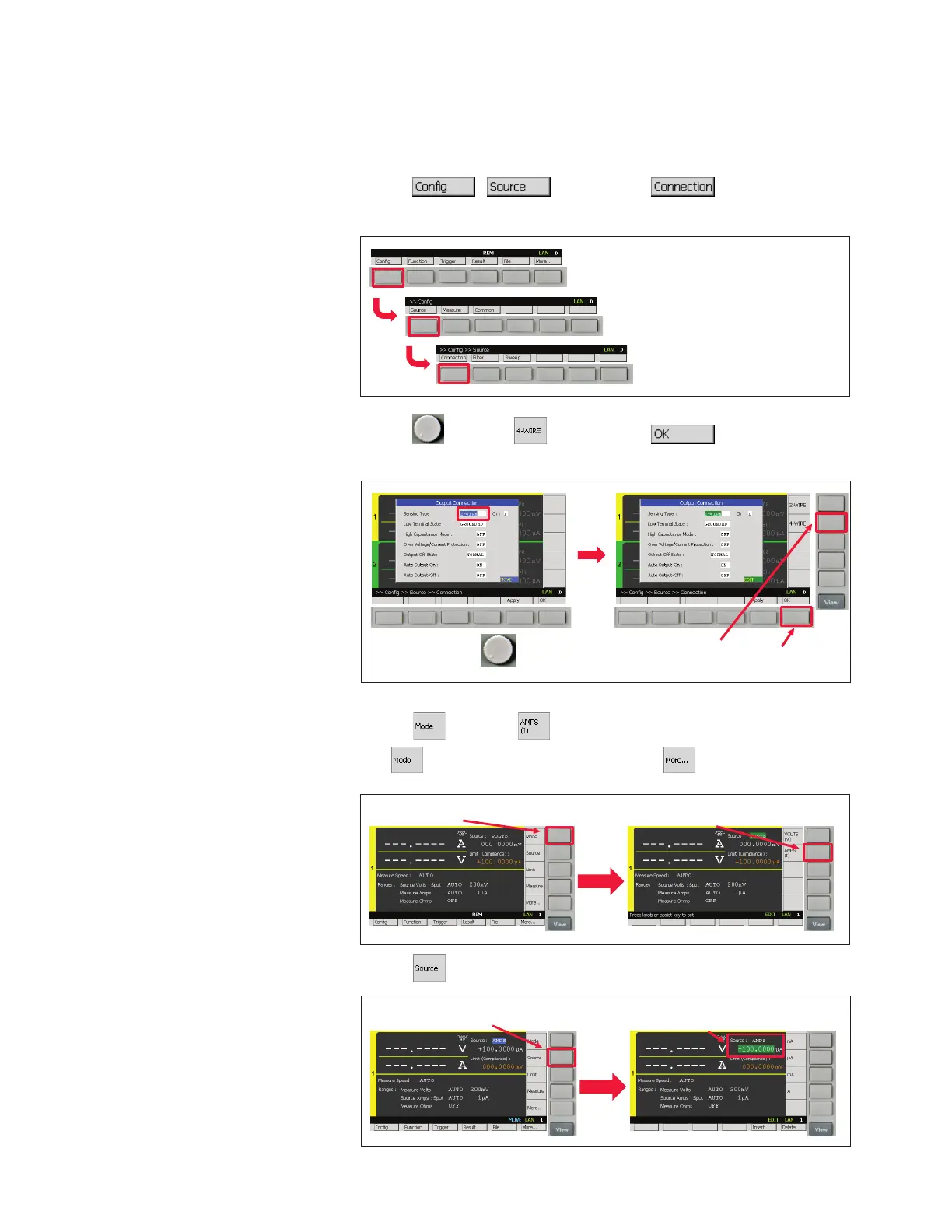

2. Perform the measurement via 4-wire connection
a. Press , , and then press to display Output
Connection dialogue.
b. Press and select , and then press to configure to use
4-wire connection.
c. Press , then press to set Channel 1 V/I Source Function to I Source.
(If can’t be found on the Assist keys, press to change the keys.)
d. Press and set Channel 1 Source Value to 10 mA.
(1) Press Con fig
(2) Press Source
(3) Press Con nection
(3) Press OK
(2) Press 4-WIRE
(1) Press
(1) Press Mode (2) Press AMPS (I)
(1) Press Source (2) Enter 10 mA
