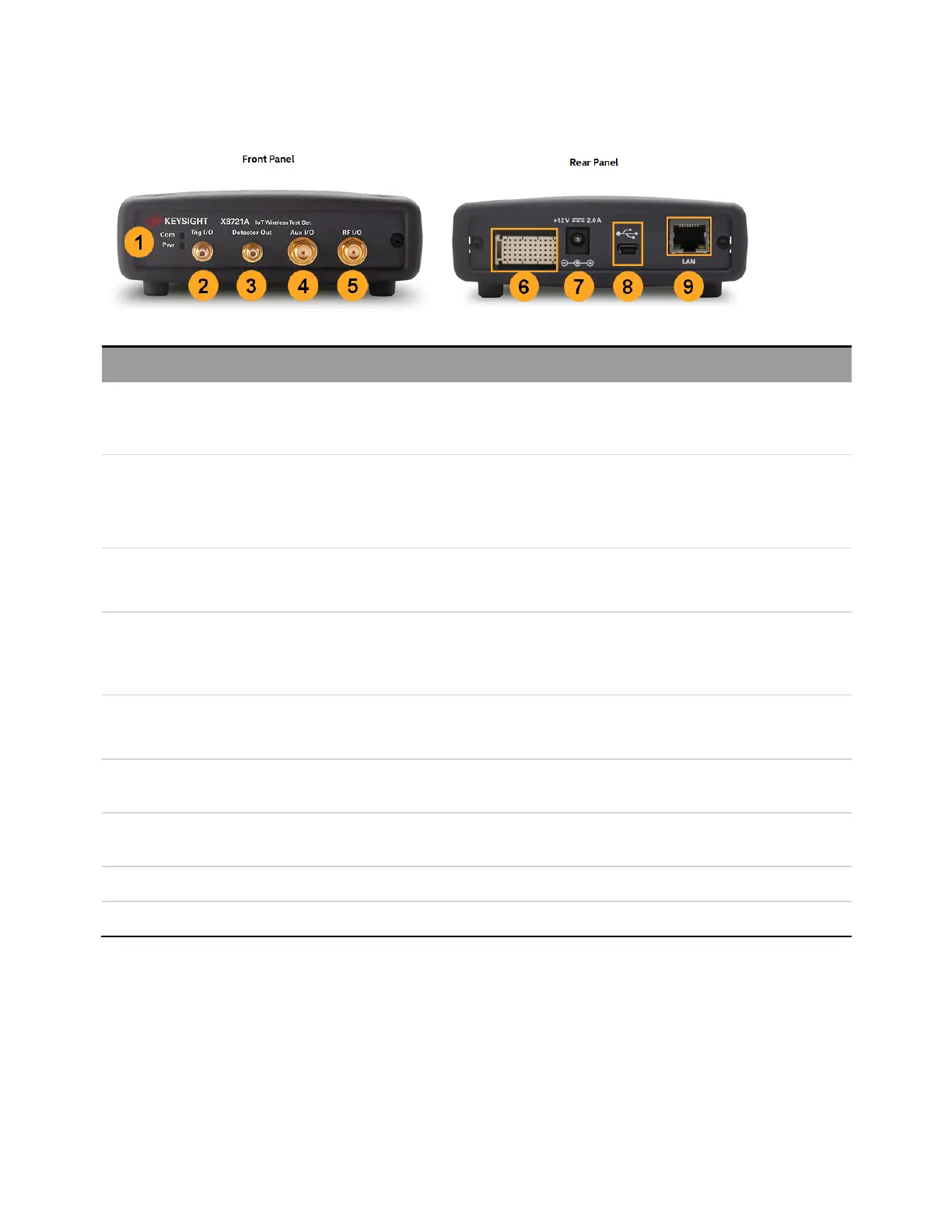

Front and Rear Panels at a Glance
Item Description
1 Com and
Pwr indic-
ators
The PWR indicator will light up when the X8721A test setis powered on.
The COMindicator flashes when the X8721A test setis communicating with a remotecontroller.
2 Trigger IO - Transmitand receive frame triggering.
- Trigger input (DUTTx/trigger from another instrument) based on threshold level.
-Trigger out to another instrument. For example, to a spectrum analyzer for frequency domain measurement.
3 Detector Out This is the buffered analog output from the onboard power detector.
It can be used to replacethe X8712AD as part of the Event-Based Power Analysis system.
4 Aux I/O ter-
minal
This provides an attenuated copy of whatis atthe RFIO port.
It can be used to connect additional hardware to extend the capabilities of X8721A. As an example, a spectrum analyzer,
signal generator, or power sensor might be connected to provide additional capabilities.
5 RFIO This is the bi-directional RF port that connects the tester to the DeviceUnder Test (DUT).
Connectone end of the RF cable here and the other end to the shield box or directly to the DUT.
6 Connection
to chassis
This item is reserved for future use.
7 Power Sup-
ply
Supply power to the X8721A test set. Connectthe power cord provided to connect to this port before connecting to the
source of electricity.
8 USB port Connectthe USB cable (8121-3190) from here to your PC.
9 LANport You can also connectyour instrument using a LANcable.
Getting Started
18
Keysight IOT8700 Series IoT Wireless Test Solution User's Guide
