Using the Accessories
Connecting the Extreme Temperature Probing Kit to the Probe
Perform the following steps to connect the N7013/14A extreme
temperature kit to the N2791A probe:
1 Connect the red and black extreme temperature differential extension
cables to the existing probe cables.

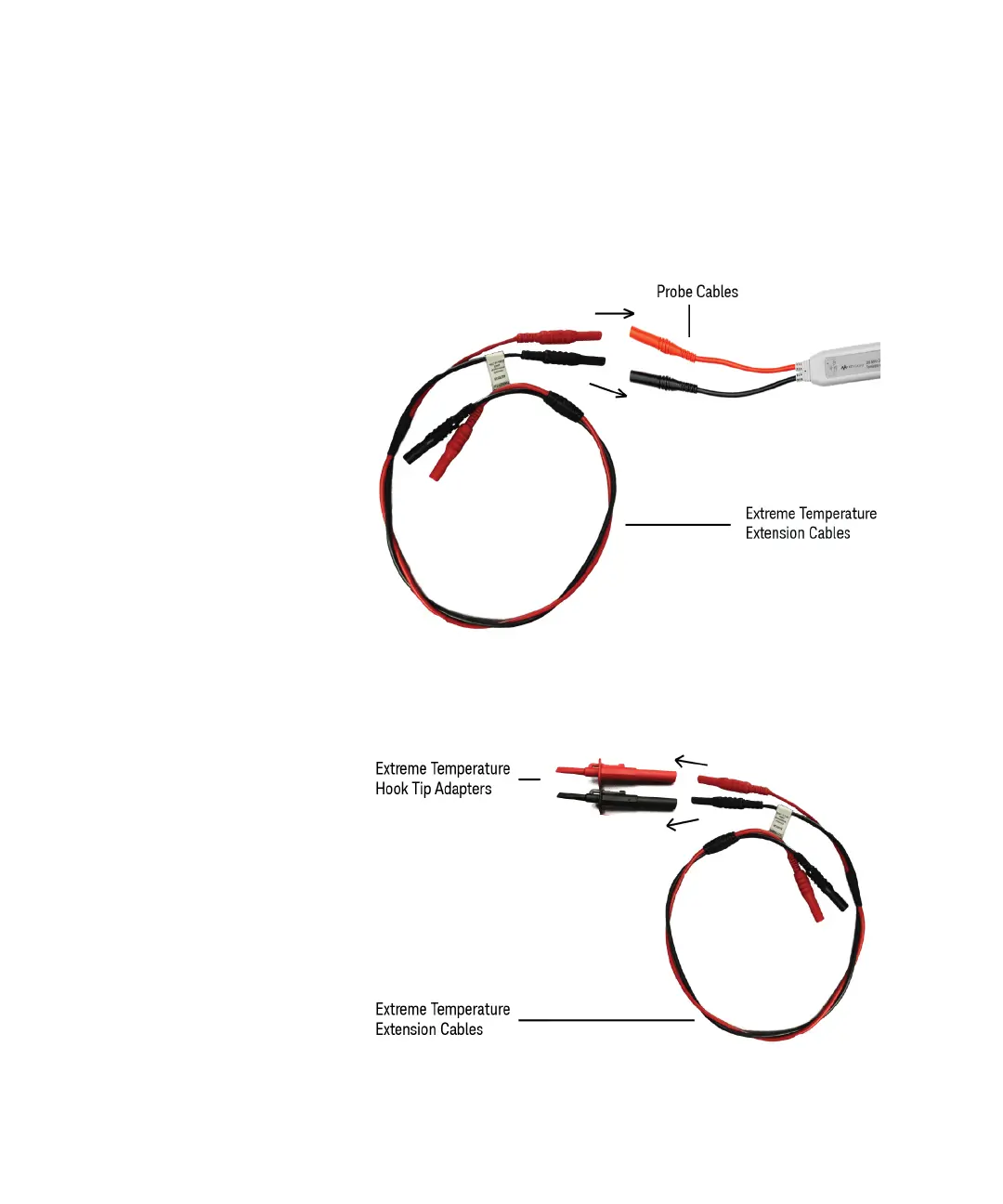

Figure 17 Connecting the Extreme Temperature Differential Extension Cables
2 Connect the red and black extreme temperature hook tip adapters to
the extreme temperature differential extension cables which are
already connected to the existing probe cables.
