28 Keysight N2791A/N2891A High-Voltage Differential Probes User Guide
Using the Accessories
Figure 18 Connecting the Extreme Temperature Hook Tip Adapters
Or,
Connect the red and black extreme temperature banana-to-socketed
tip adapters to the extreme temperature differential extension cables
which are already connected to the existing probe cables.

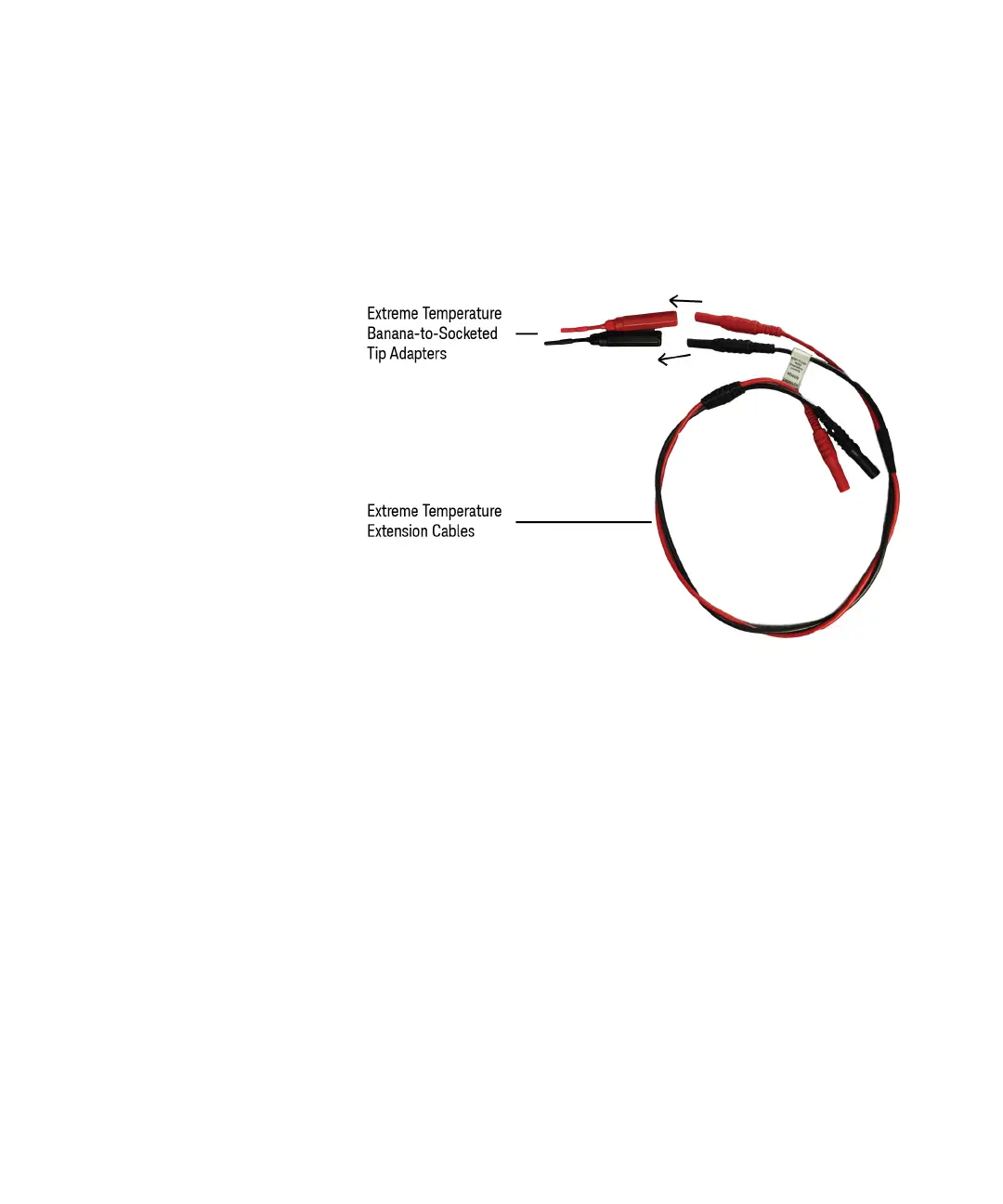

Figure 19 Connecting the Extreme Temperature Banana-to-Socketed Tip Adapters
