Optimizing Performance for All Models
Using Filters (N5162A and N5182A Only)
When the complex filter is selected, the filter corrects the frequency spectrum and other spectrum
characteristics (e.g. amplitude, phase, etc.). The complex filter is only available as a low pass filter.
Coefficients can be readily generated by tools such as Matlab to upload the filter’s coefficients into
the MXG. Refer to the Programming Guide.
Creating Real Filters with Dual ARB Modulation
The real filter applies the real coefficient component (I) of the user-defined coefficients (I + jQ) to a
waveform that defines the transitions between the symbol transition points. Coefficients for real
filters can be readily generated by tools such as Matlab to upload the filter’s coefficients into the
MXG. Refer to the Programming Guide.

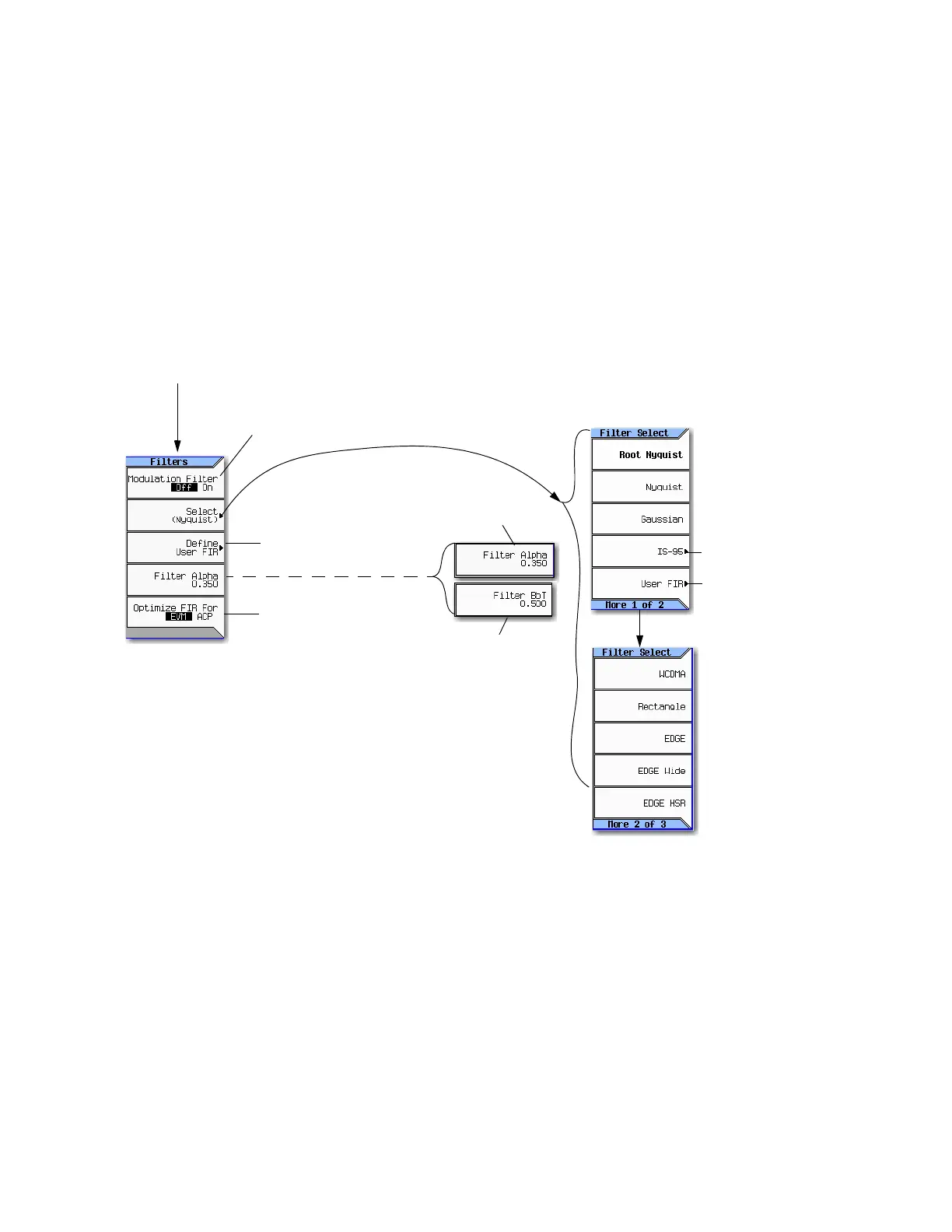

Filter Menu for Dual ARB Modulation
Mode > Dual ARB > Arb Setup > More >
This softkey changes,
on the selected filter–
Available only when the
Available only
page 225
page 225
For details on each key, use key help as described on
Opens the
Enables or disables the Modulation Filter. This
filter is typically applied to an Arb Waveform
page 217
