Keysight EXG and MXG X-Series Signal Generators User’s Guide 45

Setting Preferences & Enabling Options for All Models

How to Set Remote Operation Preferences

Configuring Remote Languages

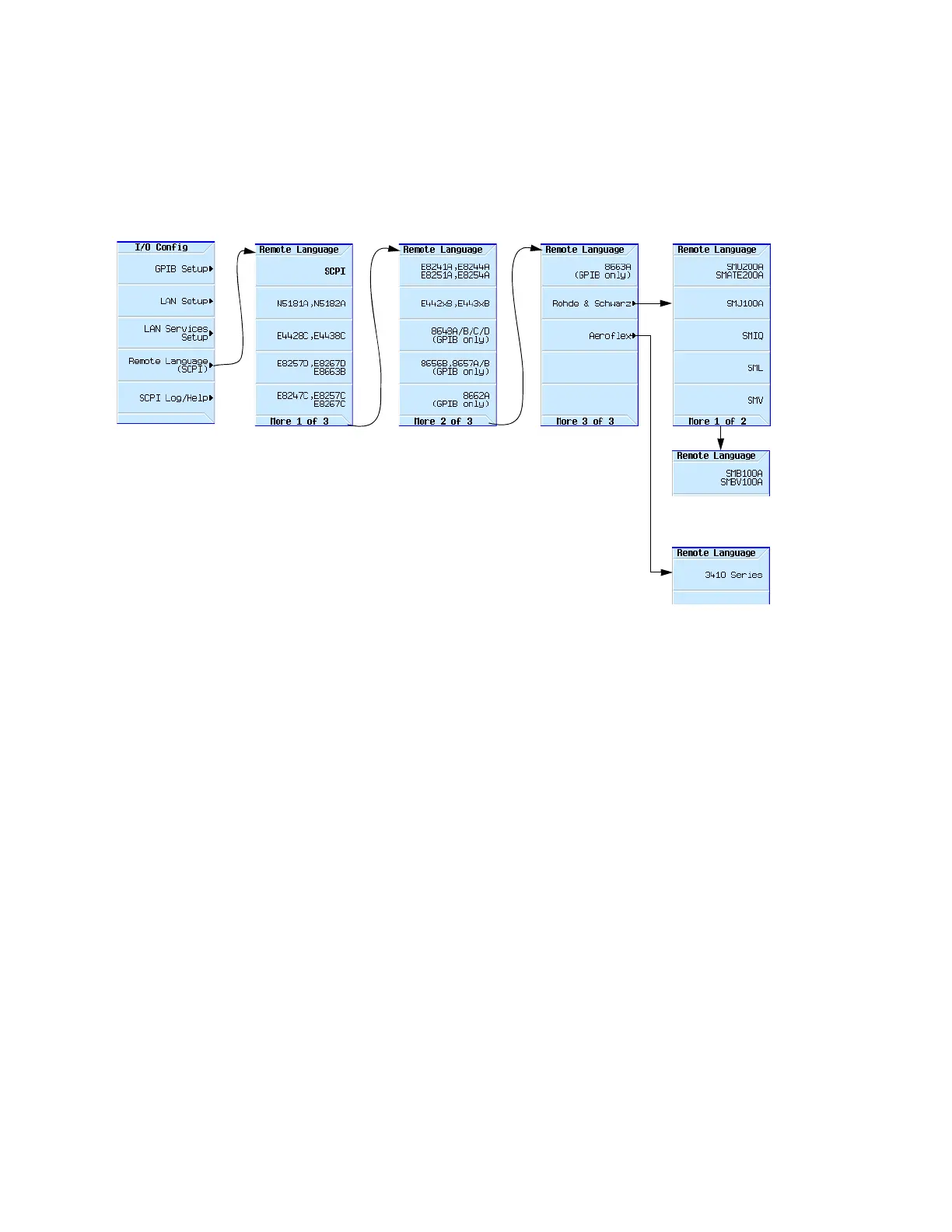

Figure 2-2 N5171B/72B/81B/82B

Utility > I/O Config

For details on each key, use key help

as described on page56.

Select the desired Remote language.

Refer to the SCPI Command Reference.
