Keysight EXG and MXG X-Series Signal Generators User’s Guide 49

Setting Preferences & Enabling Options for All Models

How to Enable an Option

There are two ways to enable an option:

— Use the License Manager software utility:

1. Run the utility and follow the prompts.

2. Download the utility from www.keysight.com/find/LicenseManager and select license (.lic)

files from an external USB Flash Drive (UFD).

— Use SCPI commands, as described in the Programming Guide.

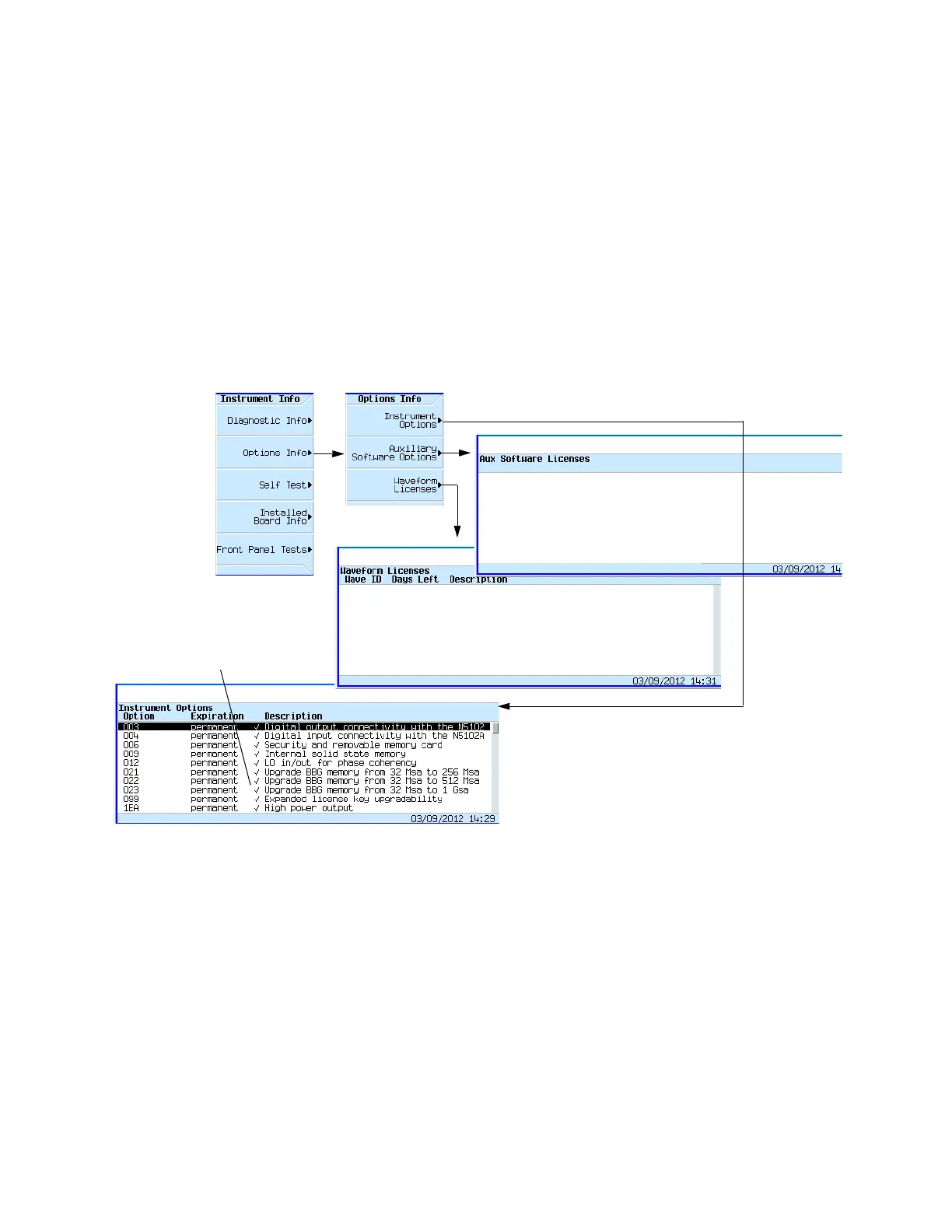

Viewing Options and Licenses

Utility >

Instrument Info

Service Software Licenses

Waveform licenses from some

Instrument options appear

here. A check mark means that

an option is enabled.

For details on each key, use key help

as described on page56.

Signal Studio applications appear here.

appear here.
