46 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Setting Preferences & Enabling Options for All Models

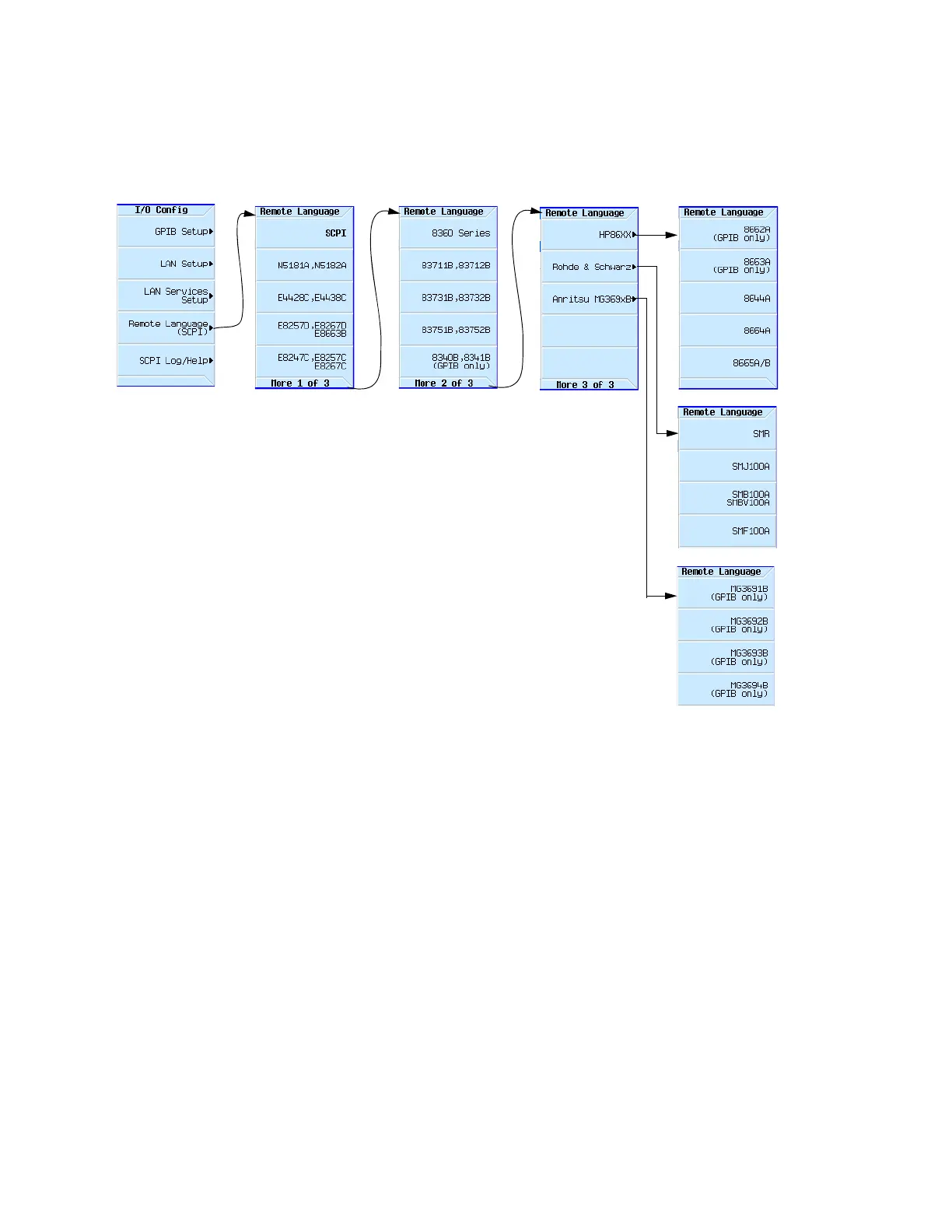

How to Set Remote Operation Preferences

Figure 2-3 N5173B/83B

Utility > I/O Config

For details on each key, use key help as described on page56.

Select the desired Remote language.

Refer to the SCPI Command Reference.

Default Chapter5
