244 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Basic Digital Operation for N5172B/82B with Options 653/655/656/657

Understanding Option 012 (LO In/Out for Phase Coherency) with Multiple Baseband Generator

Synchronization

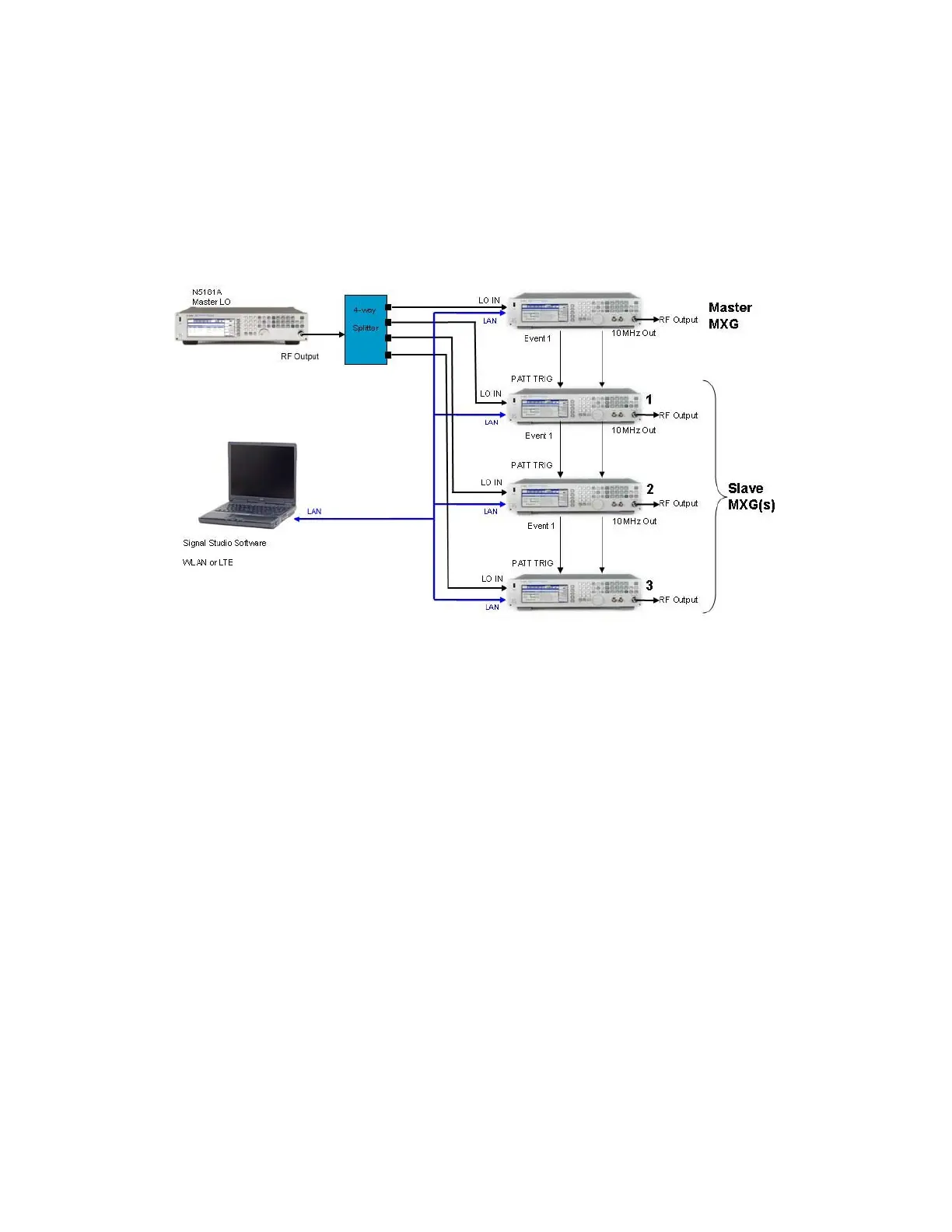

Figure 8-31 3x3 and 4x4 MIMO (LO In/Out for Phase Coherency) Equipment Setup

Note:

A SMA flexible cable is recommended for the input to the 4–way splitter connections

to the LO IN and LO OUT of the instruments with Option 012 (see page 241).
