Keysight EXG and MXG X-Series Signal Generators User’s Guide 361

Using Avionics VOR/ILS Softkeys for N5171B/72B and N5181B/82B with Option 302

Using ILS Localizer Softkeys

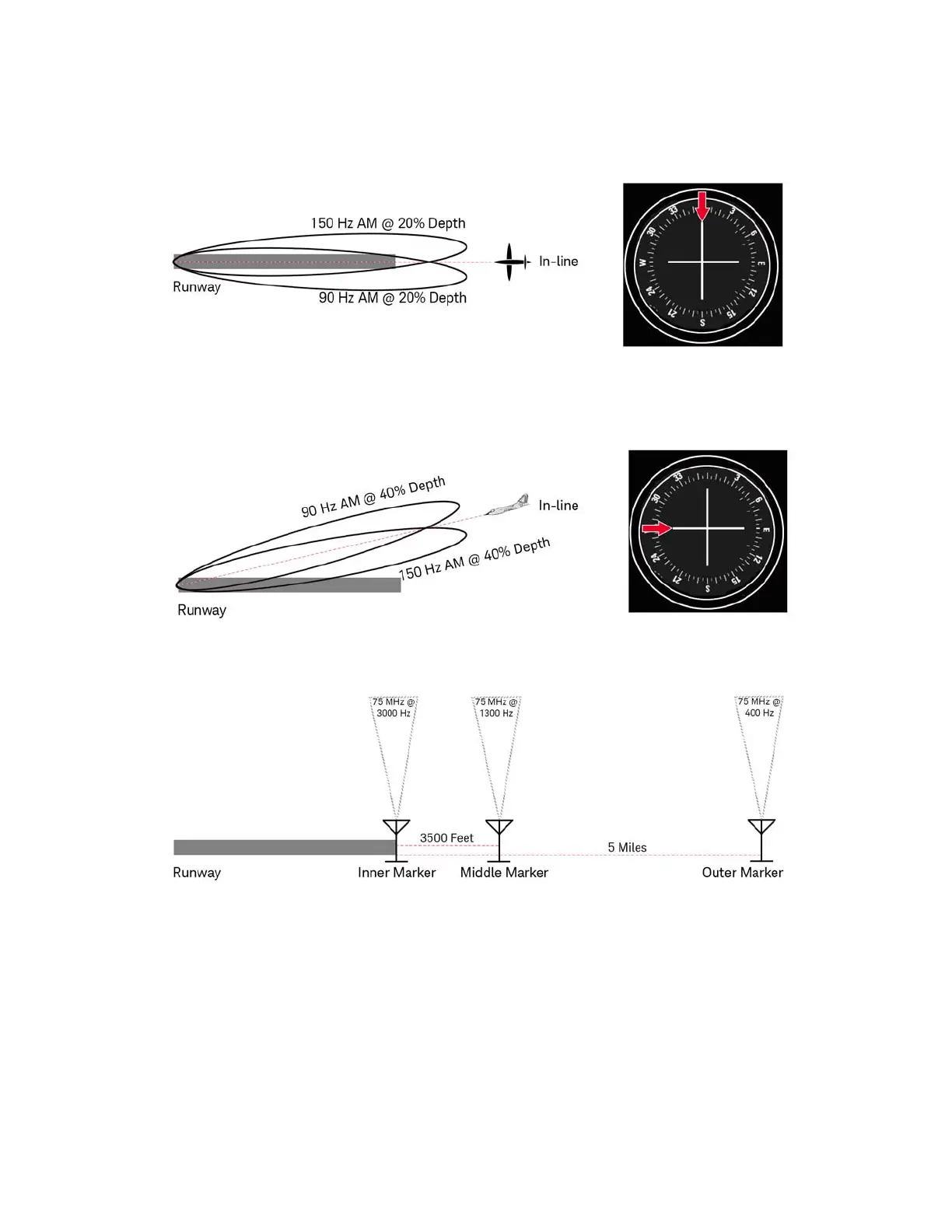

Figure 14-8 ILS Localizer: 108.10 MHz w/ 90 Hz AM (Left), 150 Hz AM (Right) @ 20%

Figure 14-9 ILS Glide Slope: 334.70 MHz w/ 90 Hz AM (Up), 150 Hz AM (Down) @ 40%

Figure 14-10 ILS Marker Beacons: 75 MHz, Inner 3000 Hz, Middle 1300 Hz, Outer 400 Hz

Default Chapter5
