Keysight Technologies N9010B-526 Installation Note

Installation Note N9030-90077 13
Option BBA, Analog Baseband I/Q Inputs Upgrade Kit
Option BBA Hardware Installation
1. Refer to Figure 6. Locate and install the N9020-60093 BBIQ Main Board into slot 7. Notice the
connector on the right side of the board where the flex ribbon cable will connect.

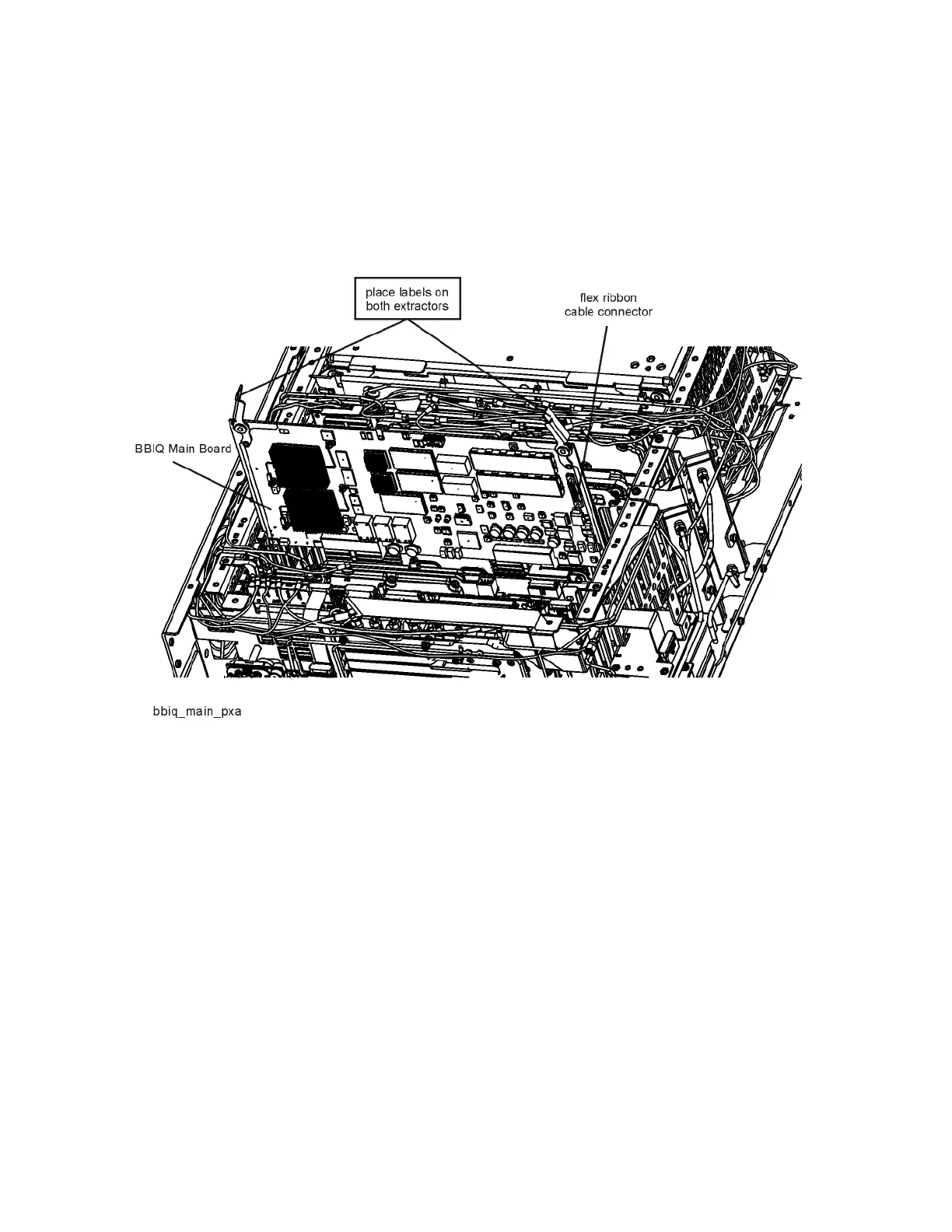

Figure 6 Option BBA Main Board
2. Locate and install labels N9020-80036, “Remove Both Cables Before Lifting” on the top of
each board extractor, both the right and left hand side.
