Average Power Measurement Demonstration
Objective
To demonstrate the capability of the Power Panel to carry out average power
measurement using the U2000 Series USB power sensor.
Instructions
On the ESG
1. Set the instrument to default Press [Preset]
2. Set the frequency and amplitude 1. Press [Frequency] 1900 > MHz
2. Press [Amplitude] 0 > dBm
3. Turn on the RF Output Toggle [RF On/Off] to “ON”
In the Power Panel
1. Set the frequency 1. Click Channel on the Instrument
Navigator panel.
2. Set Frequency (Hz) to “1.900 G” on the
Instrument Properties panel.
2. Start the measurement
(See Figure 4)
Click on the Power Panel toolbar.

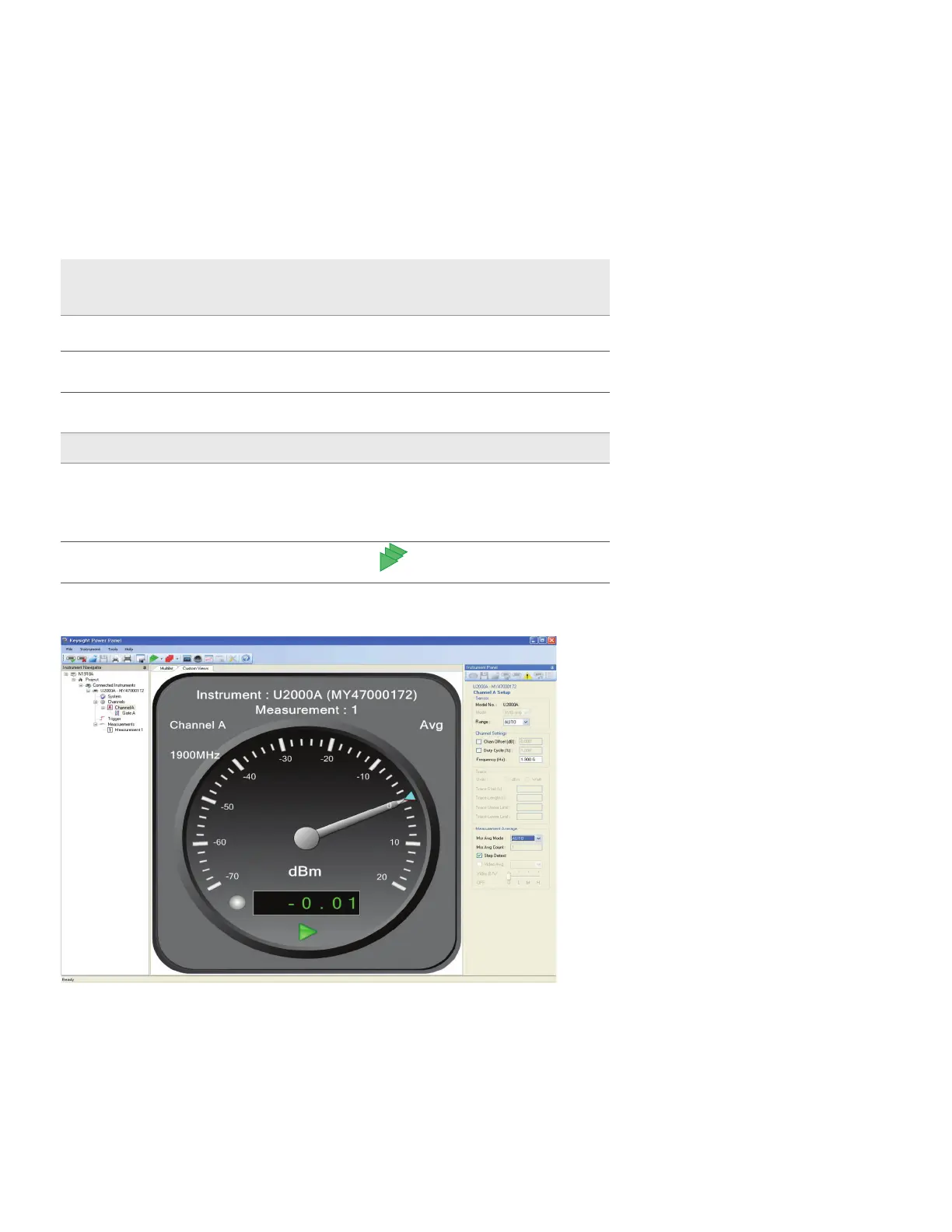

Figure 4. Setting the properties in the Power Panel for average power measurements using USB power sensor
