14 | Keysight | 34970A Data Acquisition/Switch Unit Family - Technical Overview
www.keysight.com/find/ 34970A
Keysight quality
We know you can’t afford instrument downtime due to hardware
failures and unscheduled maintenance� That’s why our engineers
designed reliability into the 34970A/34972A: A rugged enclosure,
state-of-the-art surface mount construction throughout, reduced
parts counts, and rigorous and thorough testing on all aspects of
the product�

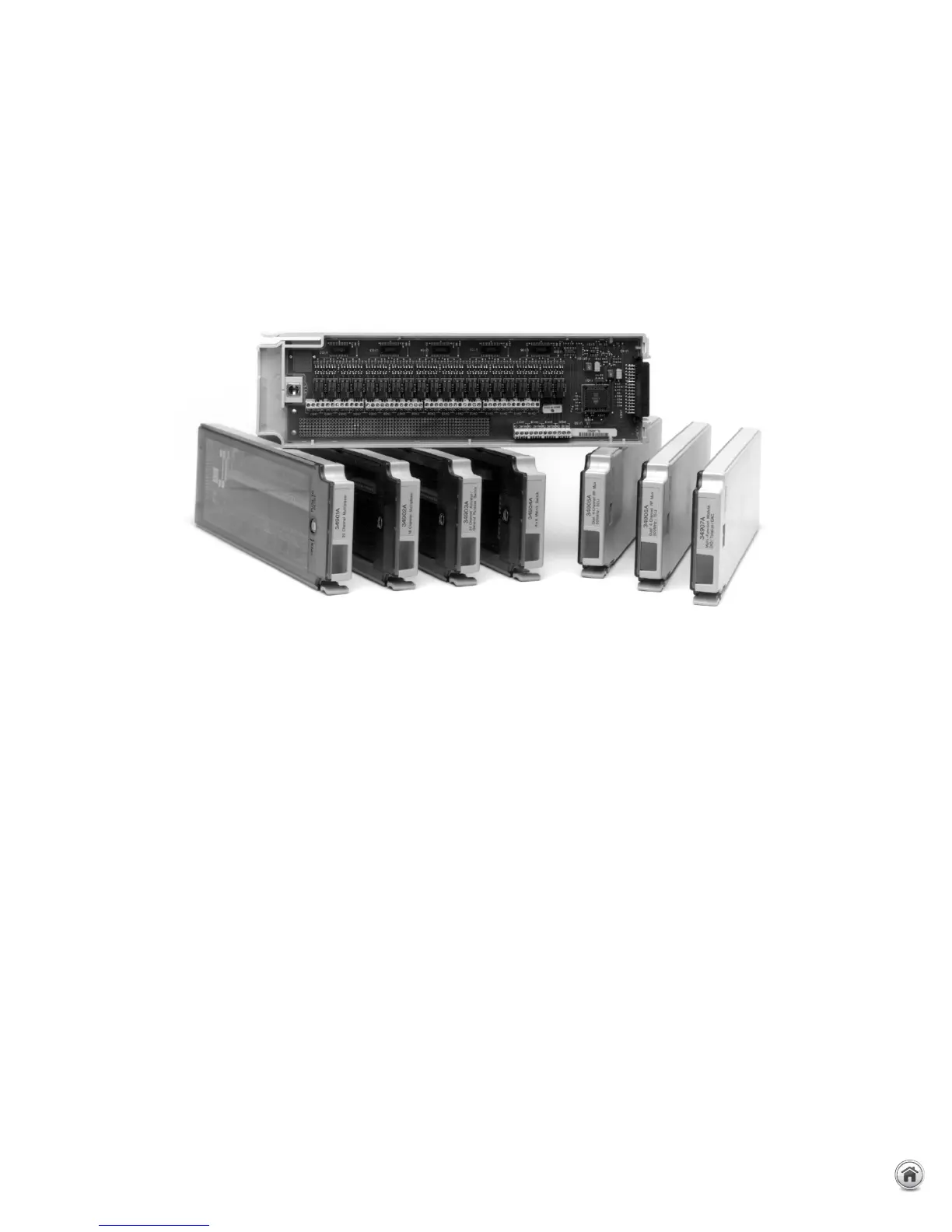

Take the guesswork out of relay maintenance
The 34970A/34972A uses our proprietary relay maintenance
system to help you to predict relay end-of-life and avoid costly
production line downtime� It automatically counts every individual
switch closure and stores it in nonvolatile memory on each
module� You can query the total number of cycles on any individ-
ual channel so you can schedule maintenance and avoid erratic
end-of-life failures�

Keysight 34970A Specifications

General

Maximum Voltage	300 V
Maximum Current	1 A
Relay Type	Electromechanical
Type	Data Acquisition/Switch Unit
Slots	3
Connectivity	GPIB, RS-232
DC Voltage Range	100 mV to 300 V
AC Voltage Range	100 mV to 300 V
Resistance Range	100 Ω to 100 MΩ
Switch Type	Multiplexer, Matrix, General Purpose
Voltage Measurement Range	100 mV to 300 V
Temperature Measurement	Thermocouple, RTD, Thermistor
Switching Speed	60 channels/sec
DC Current Range	1 mA to 1 A
AC Current Range	1 mA to 1 A
Frequency Range	3 Hz to 300 kHz
Scan Rate	Up to 250 channels/sec
Current Measurement Range	1 µA to 1 A
Resistance Measurement Range	100 mΩ to 100 MΩ
