06 | Keysight | 34970A Data Acquisition/Switch Unit Family - Technical Overview
www.keysight.com/find/ 34970A
More Power and Flexibility than You Ever
Imagined You Could Afford

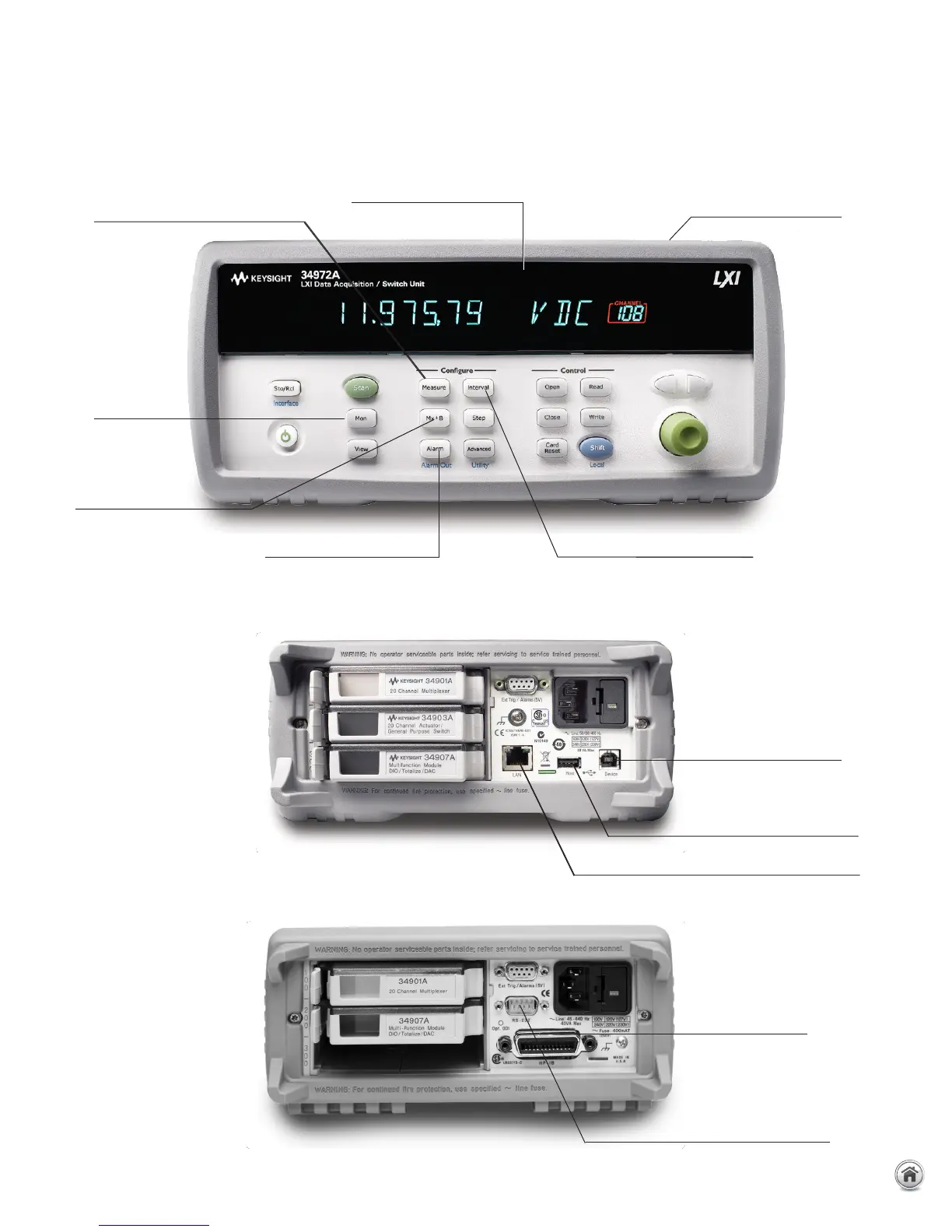

Intuitive front panel with
task-oriented, self-guiding menus
50 k readings of non-volatile
memory holds data when
power is removed
HI/LO alarm limits on each input
channel, plus 4 TTL alarm outputs
Scaling function for
converting raw inputs
into user-defined units
6½ digit (22-bit) internal
DMM measures 11 functions without
external signal conditioning
Battery-backed real-time clock for pacing
scans and timestamping readings
Monitor display
mode lets you
keep an eye on
tests in progress
– Offers up to 96 matrix
crosspoints or
120 single-ended
channels
– 8 switch and control
plug-in modules to
choose from
– Keysight BenchLink Data
Logger 3 Keysight VEE,
IVI-C, IVI-COM and
National Instruments
LabView drivers included
Built-in LAN and USB for instant connection to a PC
USB memory port to log/
transfer data to a USB flash drive
USB
34972A
34970A built-in GPIB and RS-232 interfaces
34970A
GPIB

Keysight 34970A Specifications

General

Maximum Voltage	300 V
Maximum Current	1 A
Relay Type	Electromechanical
Type	Data Acquisition/Switch Unit
Slots	3
Connectivity	GPIB, RS-232
DC Voltage Range	100 mV to 300 V
AC Voltage Range	100 mV to 300 V
Resistance Range	100 Ω to 100 MΩ
Switch Type	Multiplexer, Matrix, General Purpose
Voltage Measurement Range	100 mV to 300 V
Temperature Measurement	Thermocouple, RTD, Thermistor
Switching Speed	60 channels/sec
DC Current Range	1 mA to 1 A
AC Current Range	1 mA to 1 A
Frequency Range	3 Hz to 300 kHz
Scan Rate	Up to 250 channels/sec
Current Measurement Range	1 µA to 1 A
Resistance Measurement Range	100 mΩ to 100 MΩ
