28 Keysight E4412A and E4413A Operating and Service Guide
5 Compare the measured results to the specifications in the data sheet. If the
verification fails, refer to “Adjustments” on page 42.
High power S11 verification (with amplifier)
1 Set up the equipment as shown below.

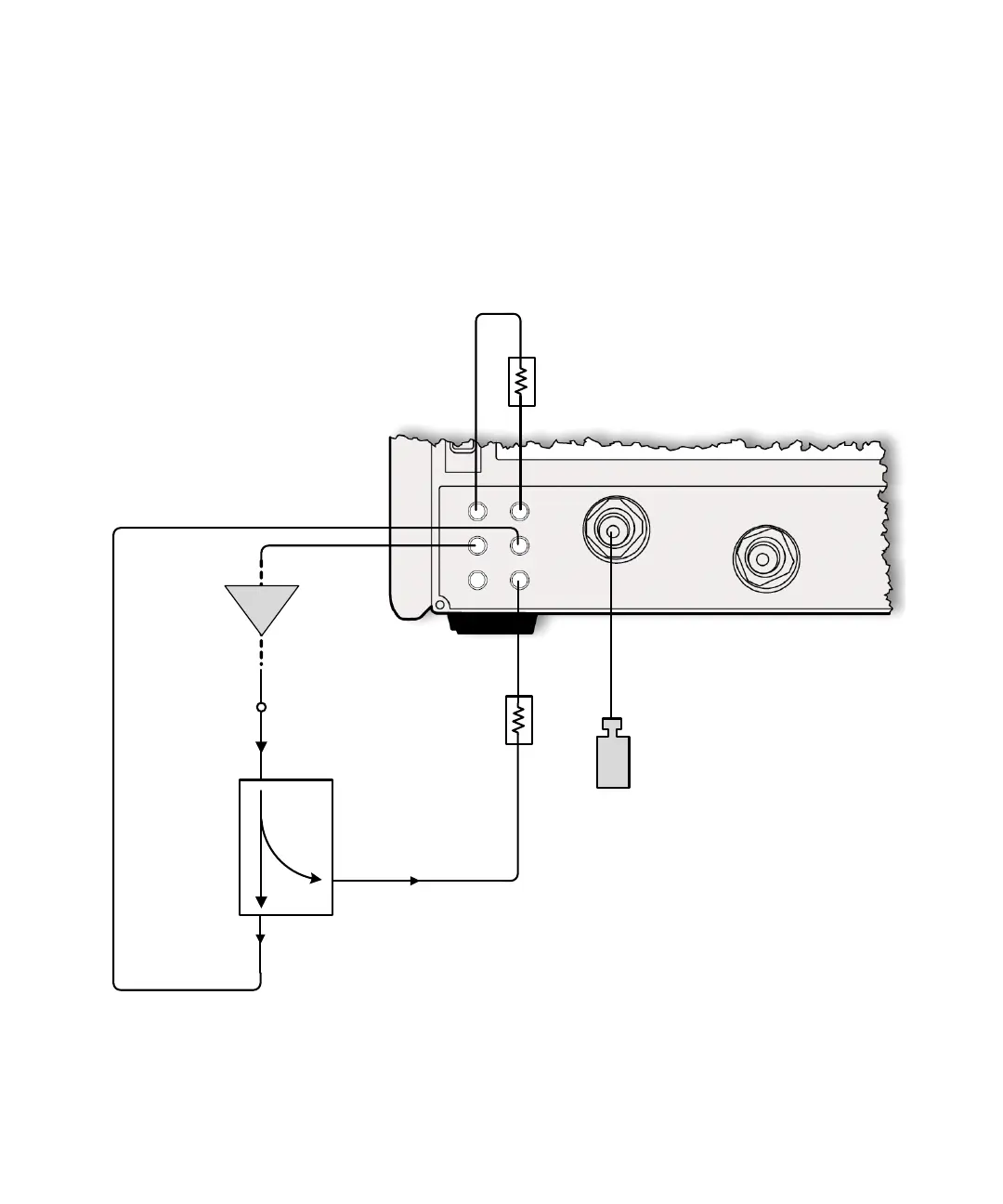

Figure 1-5 Equipment setup for high power S11 verification
Network analyzer
Power
amplifier
Input port
Transmitted port
Coupled port
CPLR ARM
RCVR A IN
SOURCE
OUT
CPLR THRU
RCVR R1 IN
Attenuator
Attenuator
E4412A and
E4413A
