Keysight N9030A - Page 13

Installation Note N9030-90045 13
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
RF Bracket Removal
1. Refer to Figure 7. Remove the RF bracket (1 ) by removing the thirteen screws (2) (0515-0372)
using the T-10 driver.

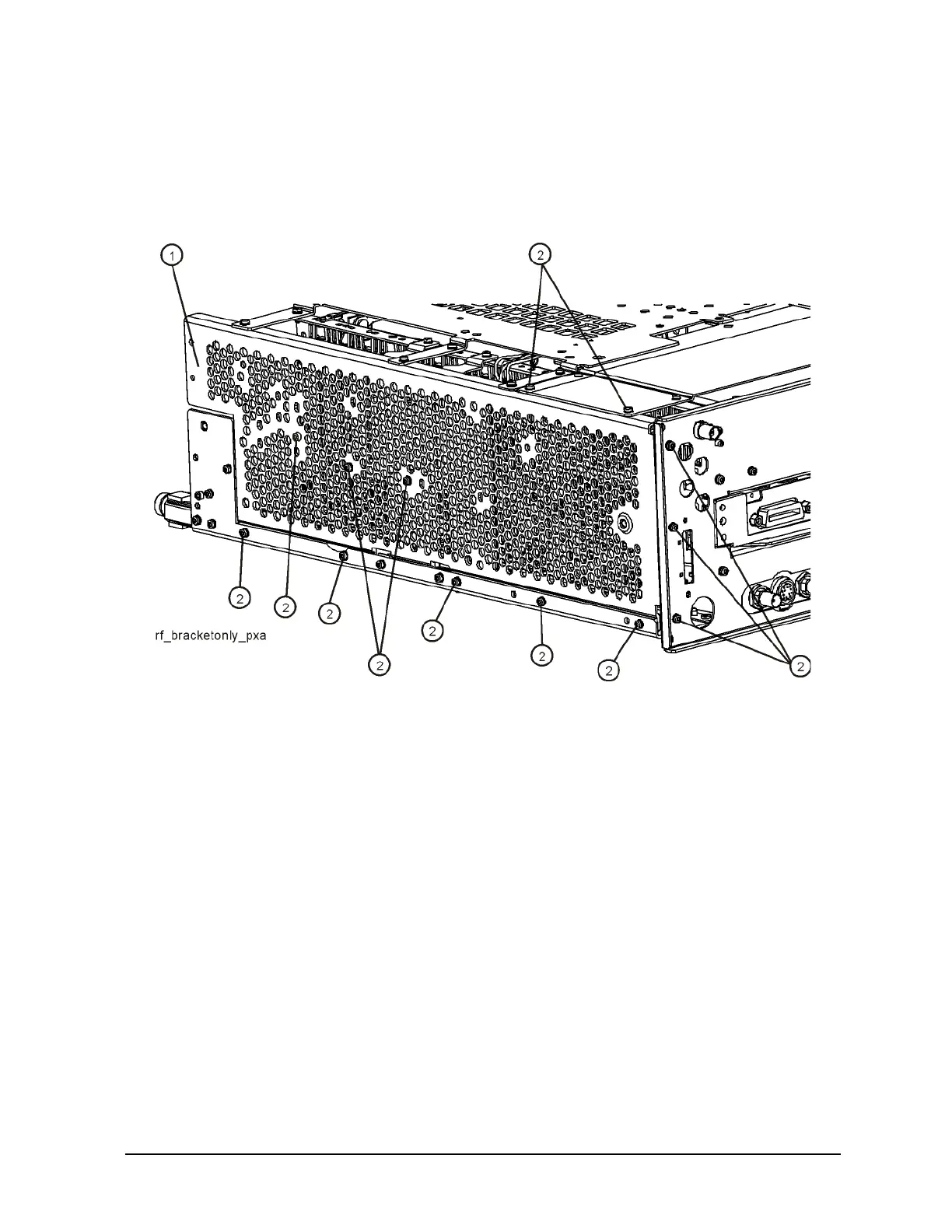

Figure 7 RF Bracket Removal
