14 Installation Note N9030-90045
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
Option BBA Hardware Installation
1. Refer to Figure 8. Locate and install the N9020-65093 BBIQ Main Board into slot 7. Notice the
connector on the right side of the board where the flex ribbon cable will connect.

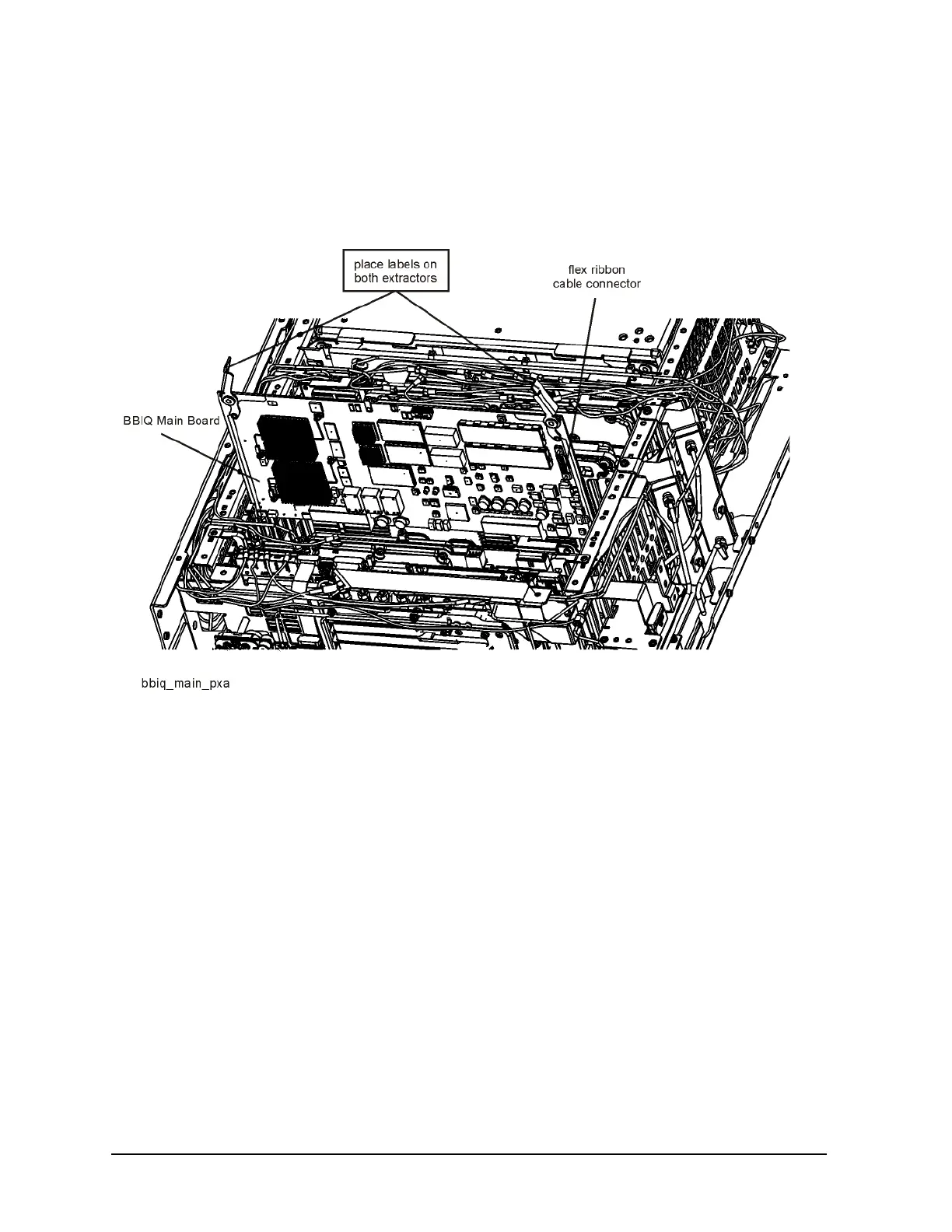

Figure 8 Option BBA Main Board
2. Locate and install labels N9020-80036, “Remove Both Cables Before Lifting” on the top of each
board extractor, both the right and left hand side.
