36 Installation Note N9030-90045
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
Instruments with LED Display
18.Refer to Figure 31. Connect the flex ribbon cable 8121-2090 (1) from the BBIQ Main board to
the BBIQ Interface board (2 ) as shown. The front frame assembly will need to be positioned
slightly to the right in order for the ribbon cable to reach the BBIQ Interface board.

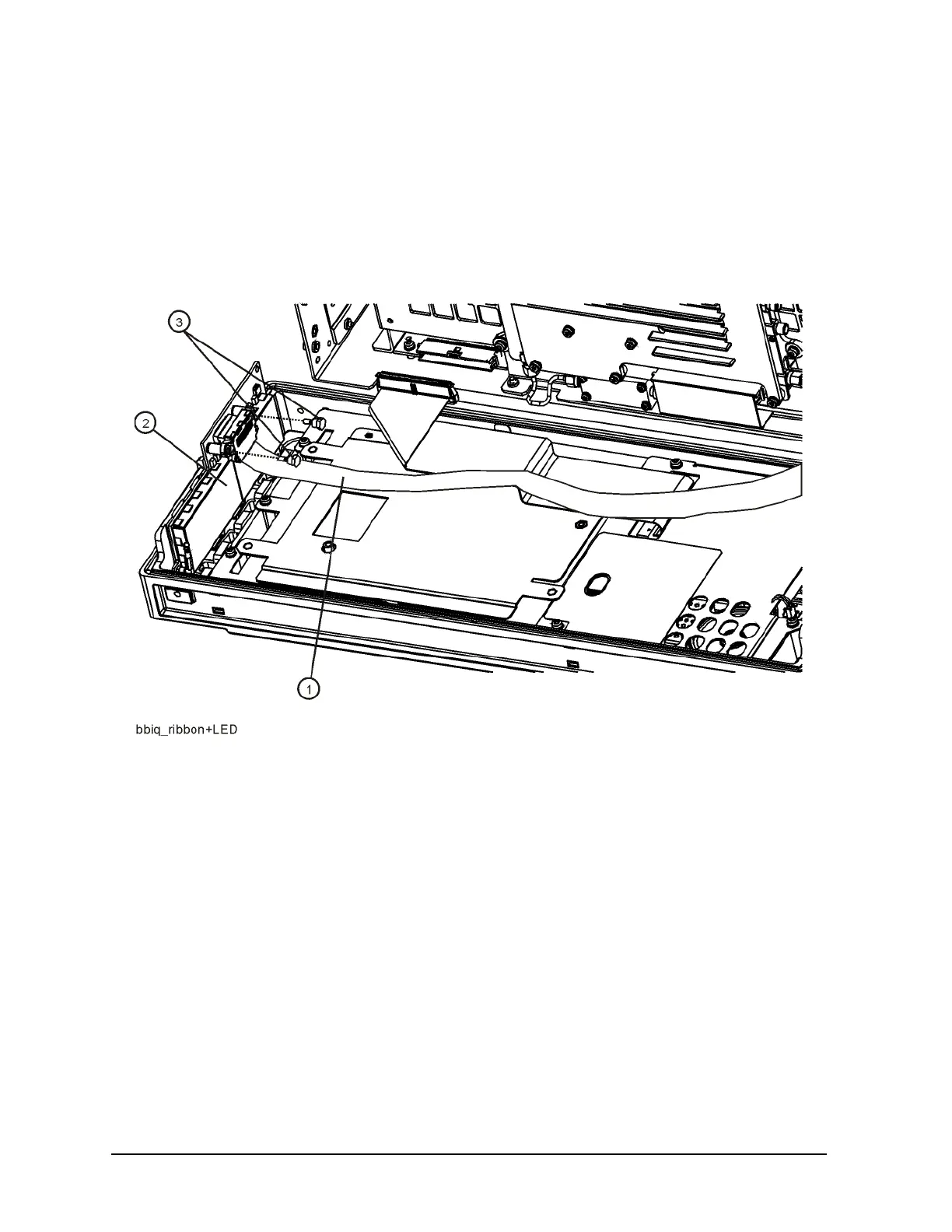

Figure 31 BBIQ Ribbon Cable Installation
19.Use two N9020-20017 Hex shoulder screws (3) to affix the ribbon cable connector to the BBIQ
Interface board connector. Torque to 4 in-lbs with the 1/4-inch socket.
