Installation Note N9030-90045 37
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
20.Refer to Figure 32. Cut the Vibration Mount 0460-2725 (4) supplied in the kit with scissors or a
knife to fit the Core Bracket N9020-00012 (5). Peel backing from the vibration mount material
and install onto the core bracket.

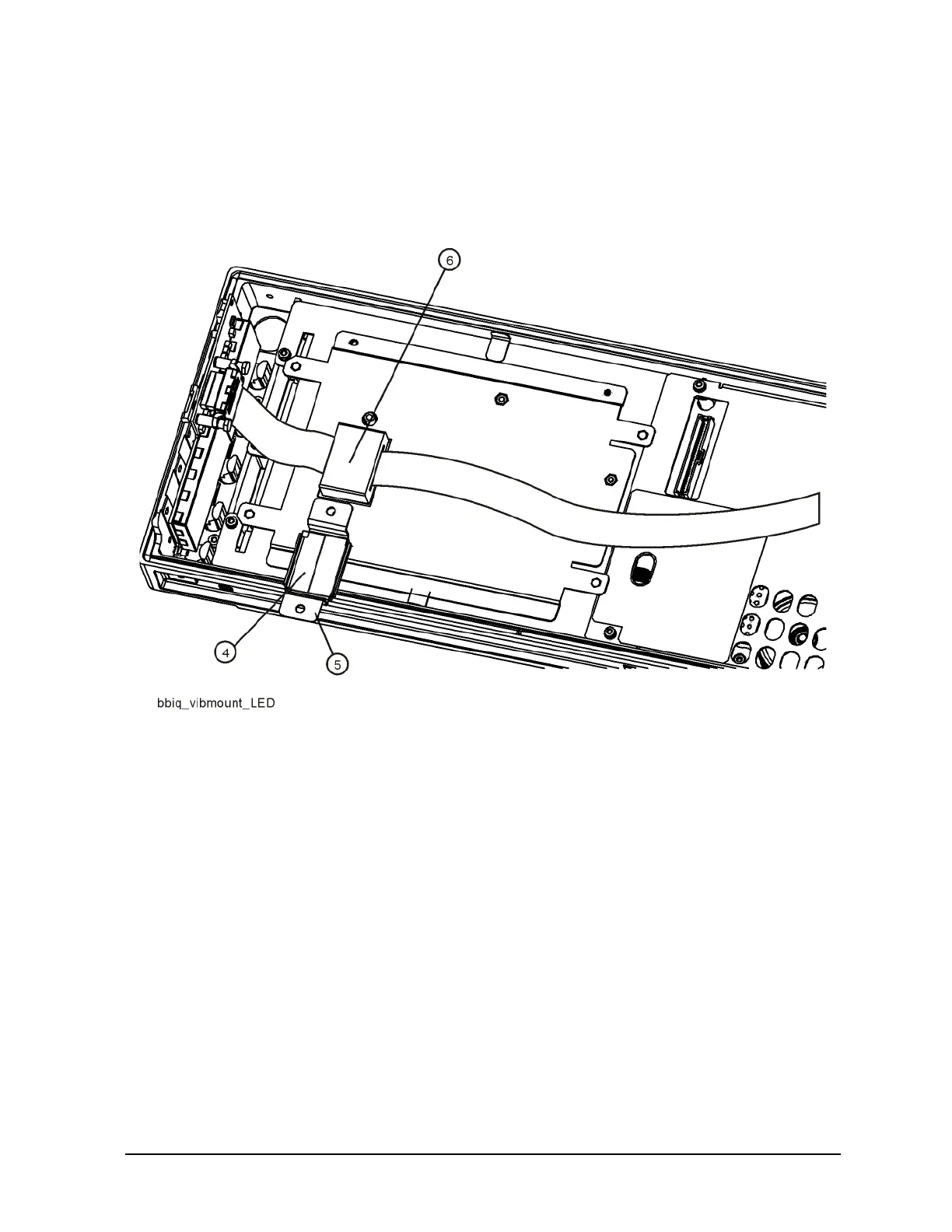

Figure 32 Vibration Mount Installation
21.Position the ferrite core (6) on the display bracket cut-out as shown.
