Installation Note N9030-90045 9
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
Instrument Cover Removal
1. Power down the instrument and wait for the standby light to come on. Disconnect the instrument
from ac power.
2. Refer to Figure 3. Using the T-20 driver, remove the 4 screws (1) (two on each side) that attach
the strap handles (2) on each side of the instrument.
3. Remove the four key locks from the instrument four bottom feet.
4. Remove the four instrument bottom feet.
5. Using the T-20 driver, remove the four screws (including washers) (3) that hold the rear feet (4)
in place.
6. Pull the instrument cover (5) off towards the rear of the instrument.

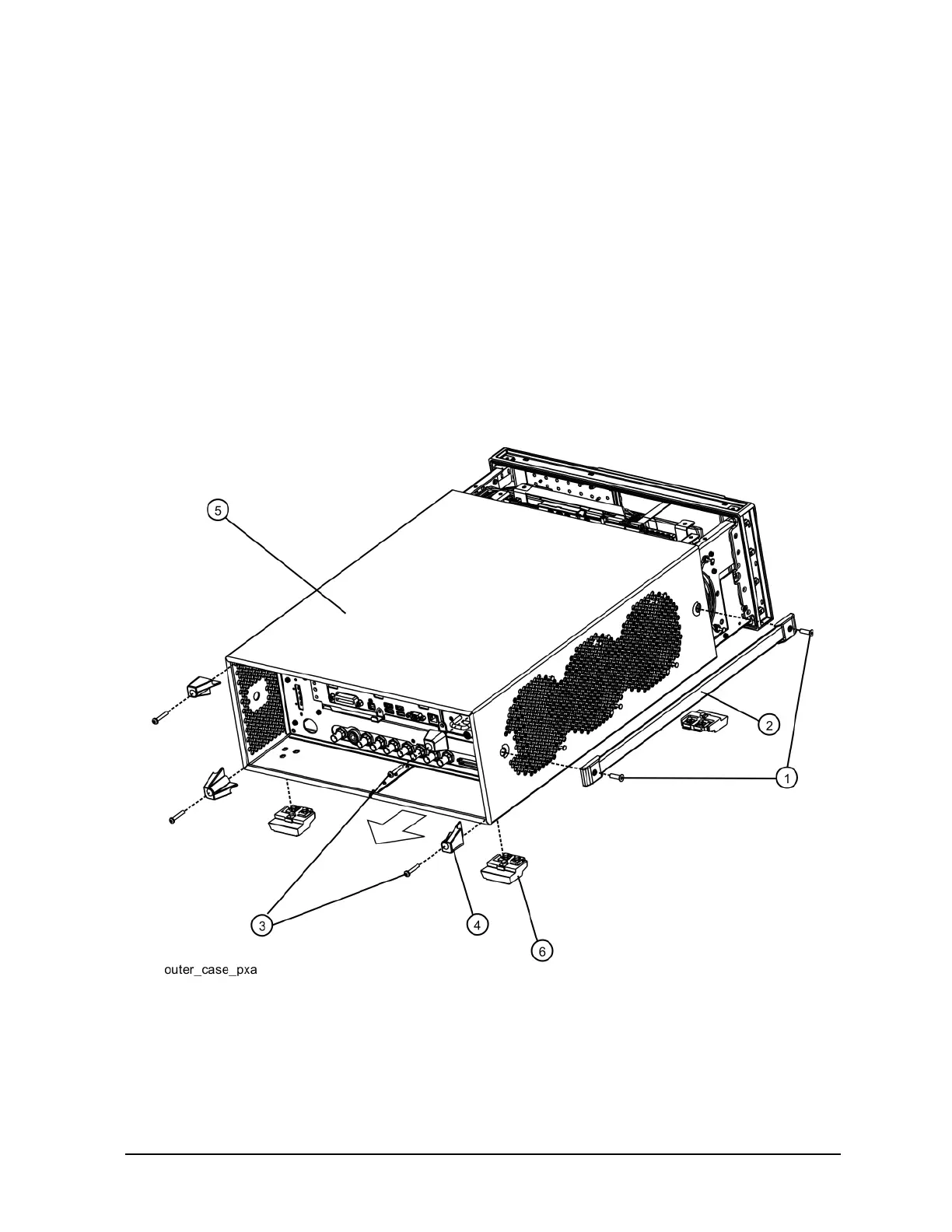

Figure 3 Instrument Outer Case Removal
