27
SCPI Programming Fundamentals
Simple SCPI Communication Methods

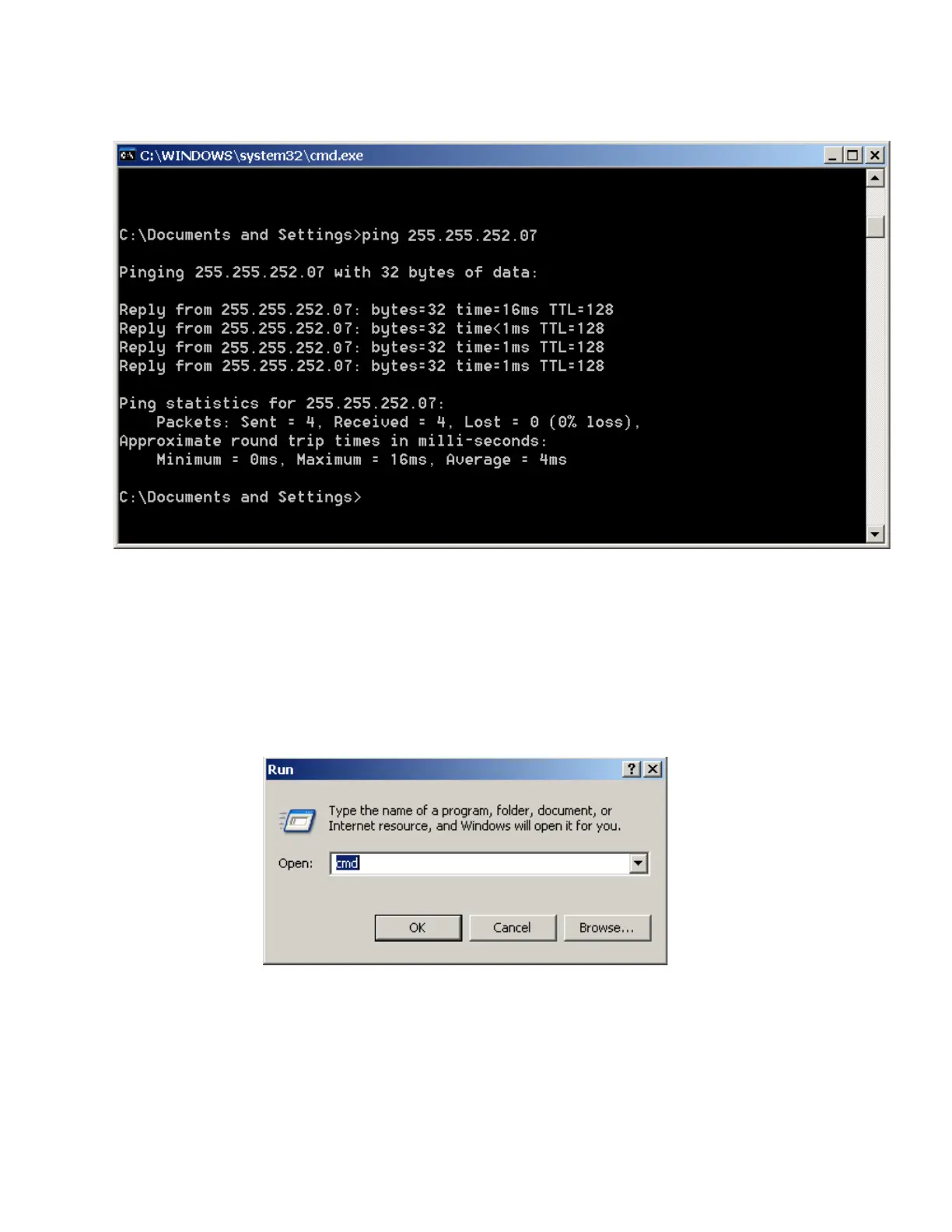

Figure 2-4 Command Window and ping Command results
Determining Instrument IP Address
1. If necessary, close the Keysight Signal Analyzer application, by selecting File > Exit from the front panel and softkey
menu, then confirming that you want to close the application.
2. When you can see the Windows desktop, move the cursor to the bottom of the screen using a mouse or the keyboard,
to reveal the Windows Taskbar. In the Windows Taskbar, click Start, Run.
3. In the Window Run Dialog (shown in Figure 2-5), type “cmd” then click OK or press Enter to open a DOS command
window.
Figure 2-5 Windows Run Dialog
4. At the DOS command prompt, enter “ipconfig”, and press Enter.
The results should resemble the window shown in Figure 2-6. The IP Address is listed under Ethernet adapter Local
Area Connection.
