10 Installation Note N9030-90058
Option EXM, External Mixing Upgrade Kit
Top Brace Removal
Refer to Figure 2. To remove the top brace (1), use the T-10 driver to remove the twelve screws (3)
(0515-0372) attaching the top brace to the chassis. Remove the wire hold down 1 (as shown in Figure
3). Remove the twelve screws (14 screws with Option B1X) (4) (0515-1227) attaching the top brace
to the boards.

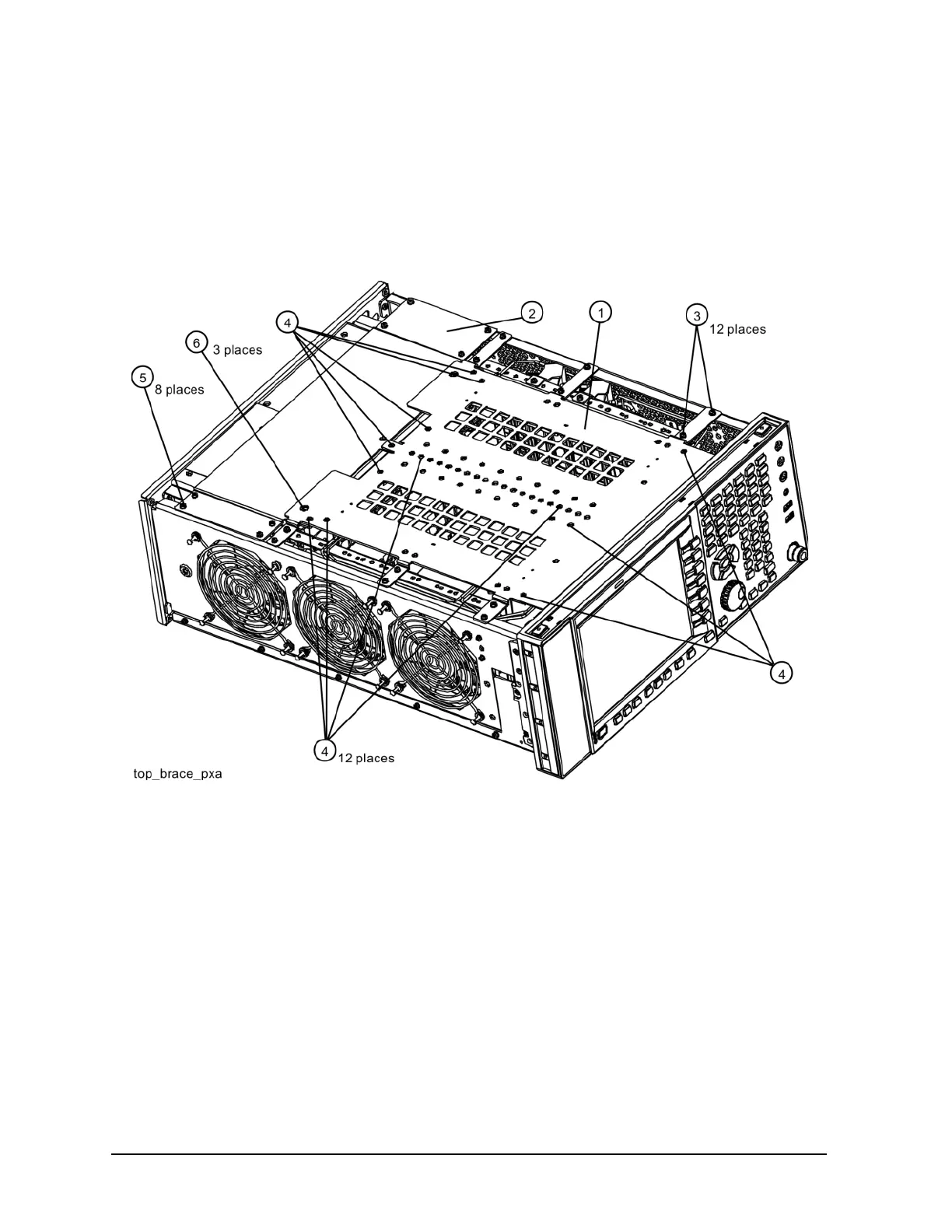

Figure 2 Top Brace Removal
