KFV SIEGENIA DRIVE IO module - Cable Diagrams and Connections

11/24

SIEGENIA access control systems
IO module/IO module smart
11/2405.2020H39.ELEKS010EN-00
9 Cable diagrams
WARNING
Risk of fatal injury from electric shock
Exposed electrical components.
• 
• All work on the 230 V AC mains power supply must be carried out in compliance with the current German VDE regula-

9.1 IO module/IO module smart in slave mode
The IO module/IO module smart communicates digitally via the SI-BUS log with the electromechanical drive of the

IO module smart is operated in slave mode.
Max. 3 SIEGENIA ACS and up to 7 IO modules can be integrated into a BUS system. The last slave component must

supply.

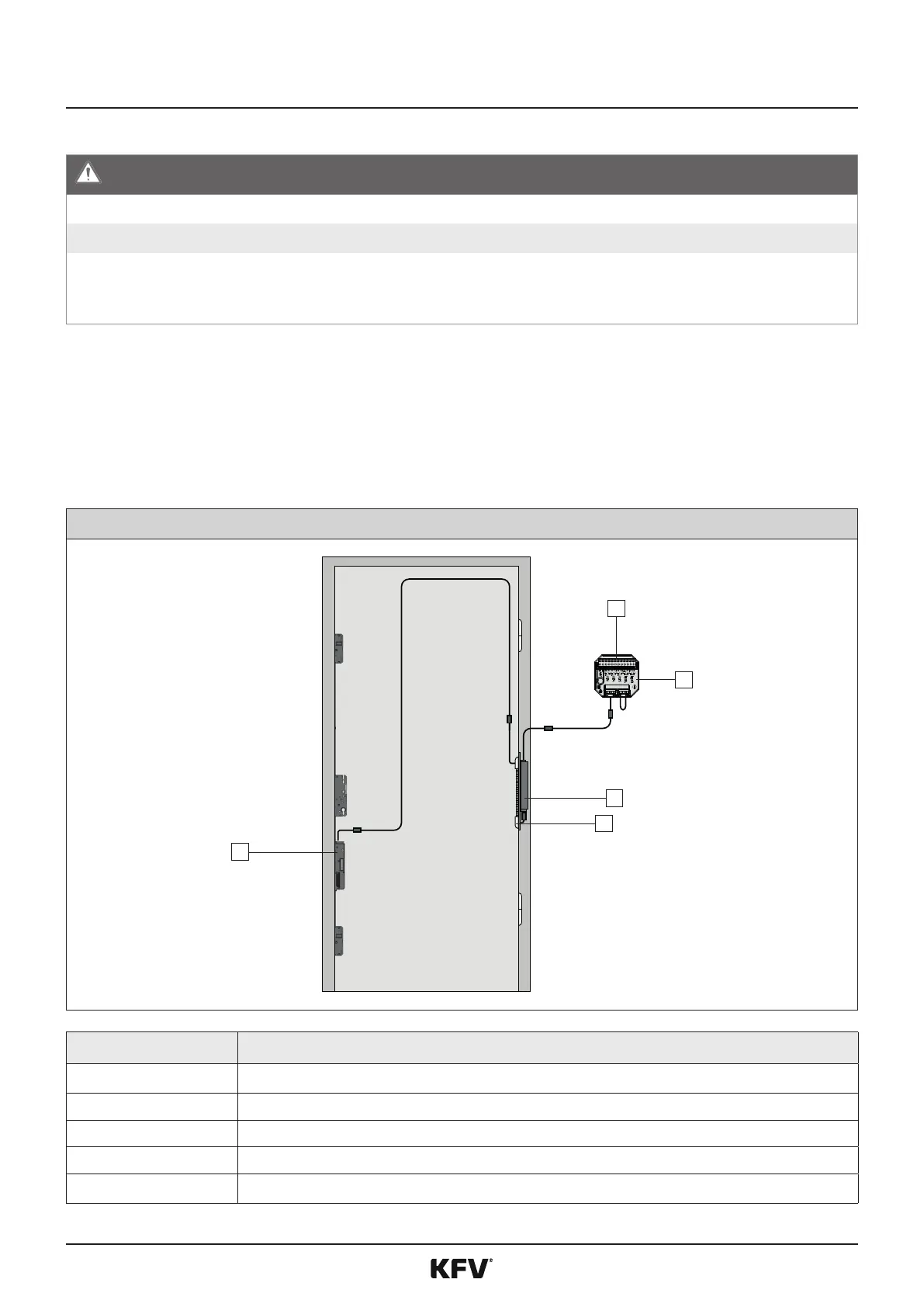

IO module/IO module smart with frame-integrated power supply
1
3
5
4
2
Item Name
1 Electromechanical KFV drive (A-opener, GENIUS A, GENIUS B, GENIUS PANIC)
2 Cable transfer
3 Frame-integrated power supply
4 
5 Inputs/outputs for external devices (e. g. intercom system)
