FZ-USV-230 (SXM 2540) [ENG]
Stand: 10.03.2008 page 17 from 21

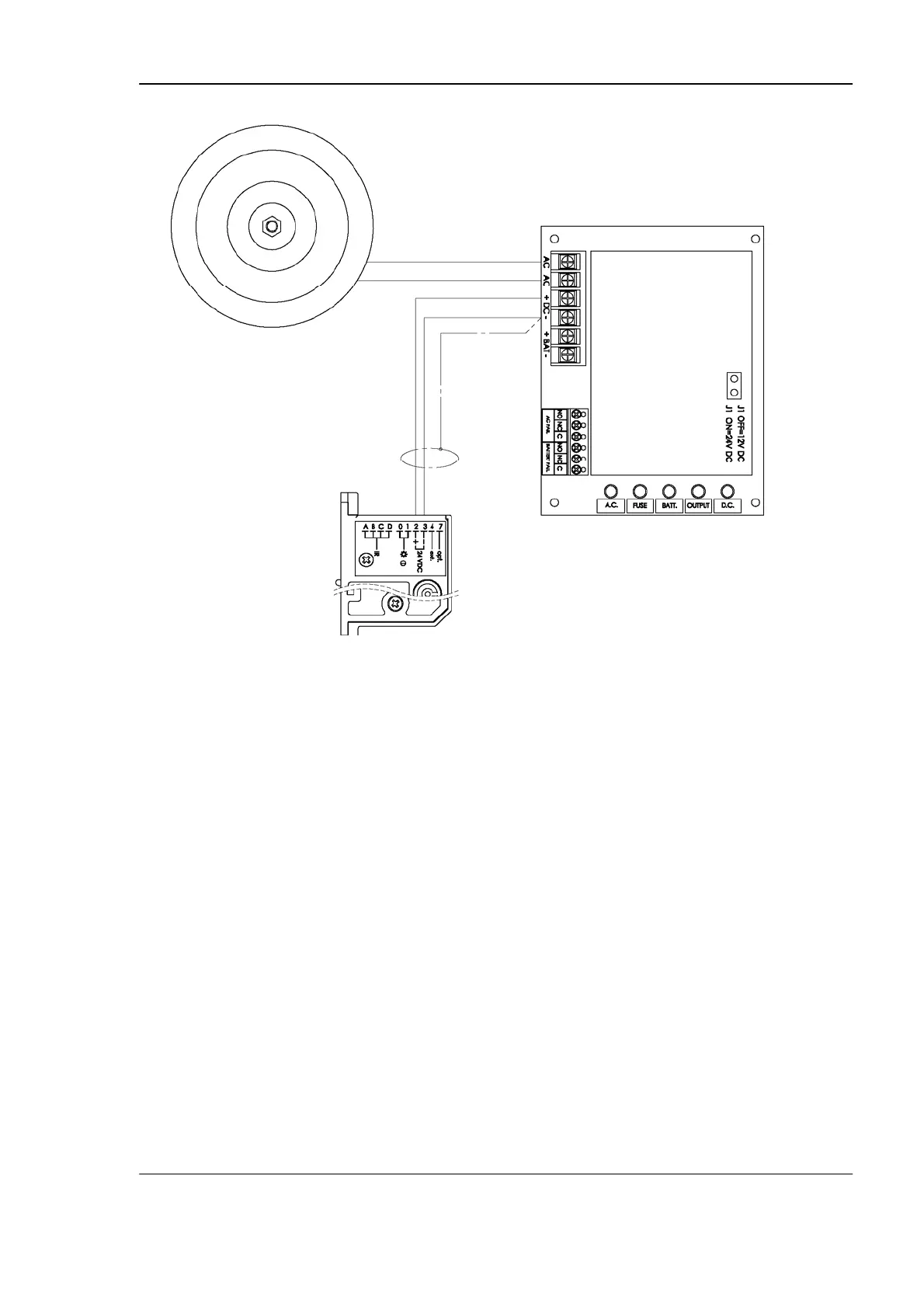

Fig. 2
4.4. Warning Output Connections
AC Fail ;- Connect the AC Fail output position C dry contacts to the monitoring
device. In the case of AC Failure the relay, which is Fail Safe, will de-energise
within 1 minute.
Battery Fault ;- Connect the Battery Fail output position C dry contacts to the
monitoring device. If a battery is not connected or improperly connected, the
Yellow LED (L3) will illuminate within 1 minute (or directly if you push the battery
test button underneath the LED’s) and the Battery Fail relay, which is Fail Safe,
will de-energise.
