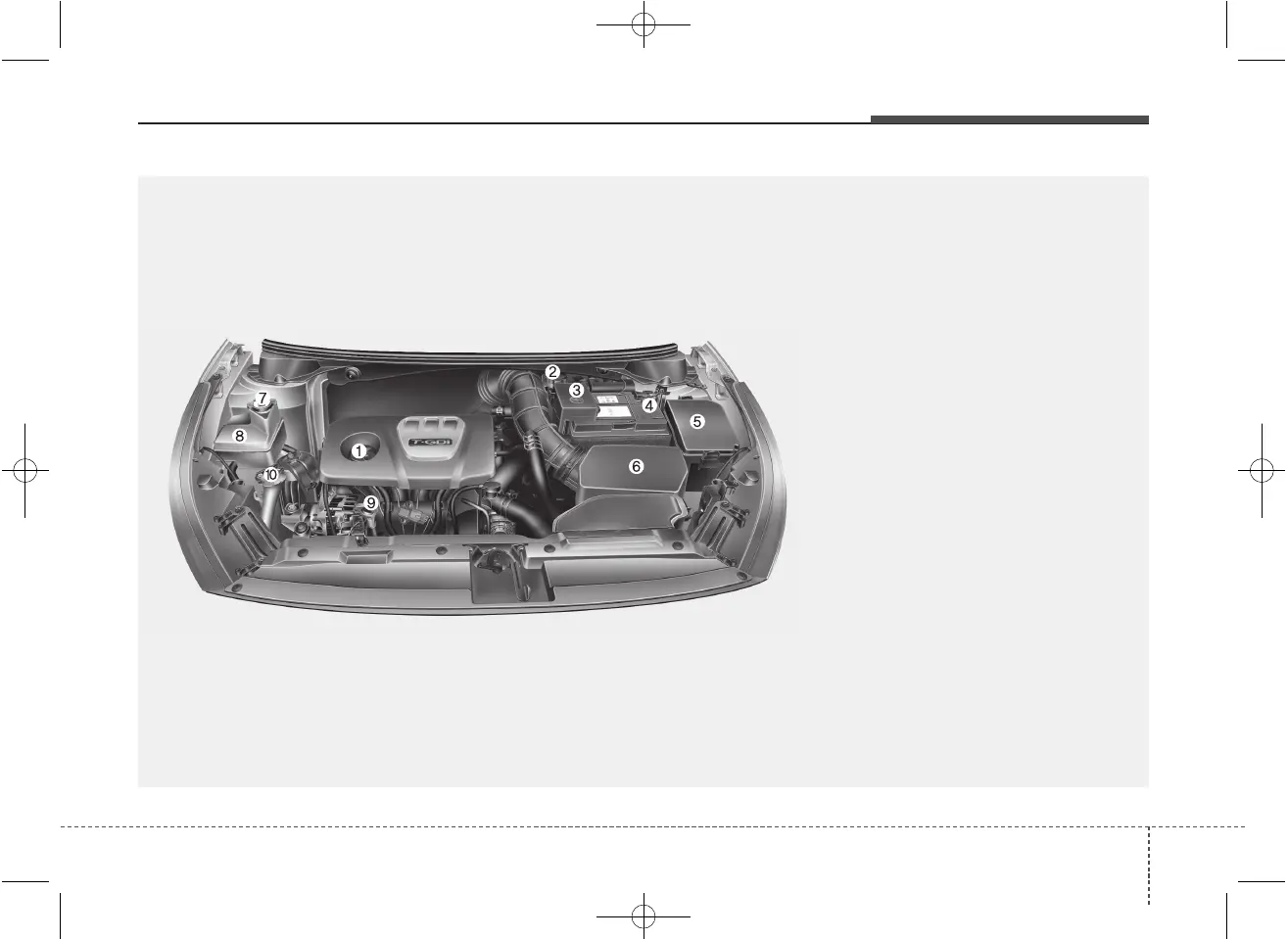

Your vehicle at a glance
1. Engine oil filler cap ............................7-28
2. Brake/clutch fluid reservoir ................7-32
3. Positive battery terminal ....................7-42
4. Negative battery terminal ..................7-42
5. Fuse box............................................7-56
6. Air cleaner ........................................7-35
7. Radiator cap ......................................7-31
8. Engine coolant reservoir....................7-29
9. Engine oil dipstick..............................7-27
10. Windshield washer fluid reservoir....7-33
OJD075106L
❈ The actual engine room in the vehicle may differ from the illustration.
■
■
Gasoline engine (Gamma 1.6 T-GDI)
