Kia Ceed 2016 - Page 575

769
Maintenance

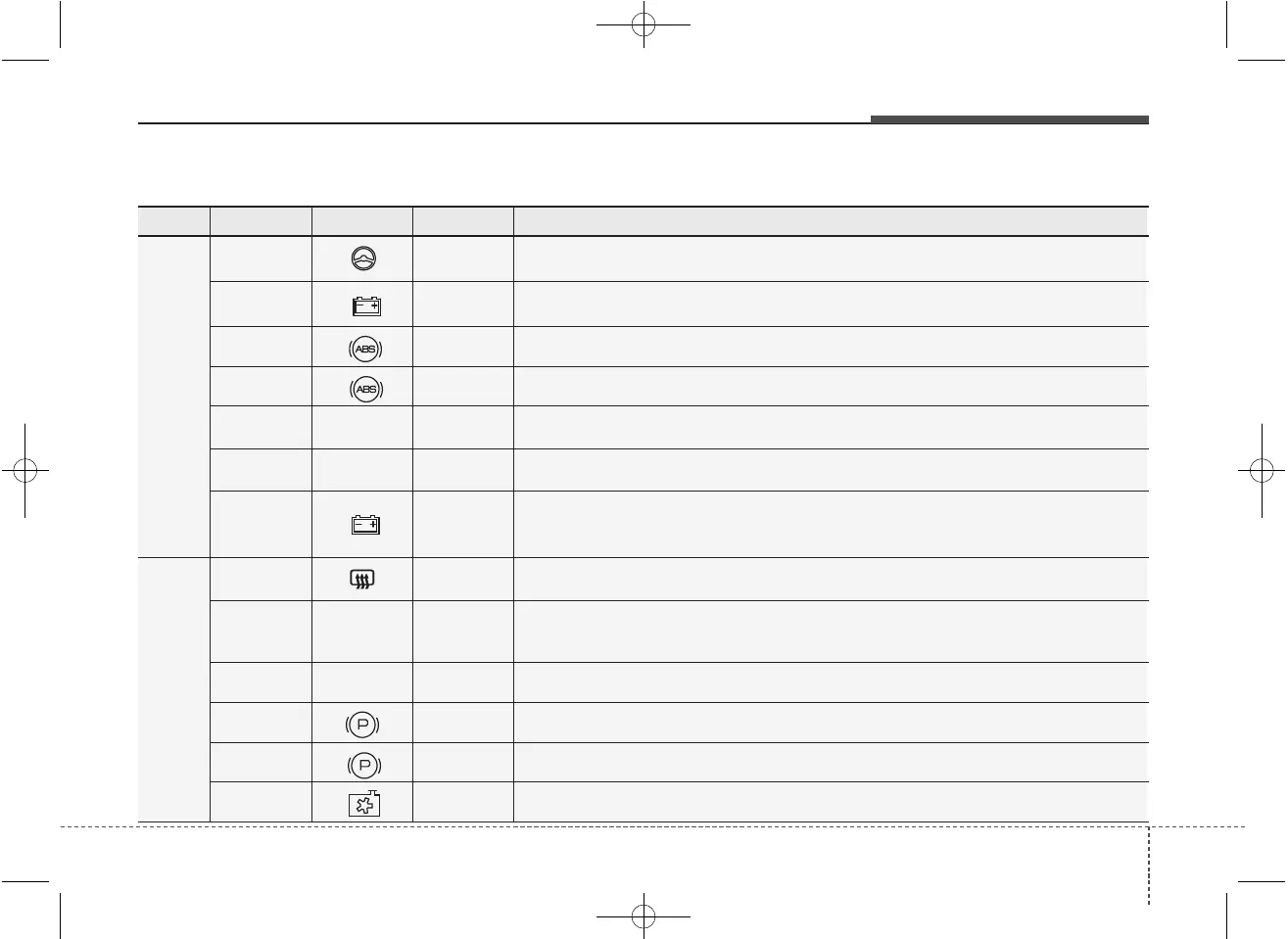

Fuse Fuse rating Symbol Fuse Name Protected component
MULTI
FUSE
80A
1
POWER
STEERING
EPS Unit
60A
B+1
B+1
Inner Fuse Panel, IPS1 (H/LAMP HI LH,H/LAMP LOW LH, FRT TURN LH,
POSITION LAMP LH), IPS2 (STATIC BENDING LAMP LH/RH, DRL LH/RH)
40A
1
ABS1 ESC Control Module, ABS Control Module
40A
2
ABS2 ESC Control Module, ABS Control Module, Multipurpose Check Connector
40A
IG2
IG2
W/O Smart Key : Ignition Switch, START RELAY
With Smart Key : IG2 RELAY, START RELAY
60A
PTC
HEATER
PTC
HEATER
PTC Relay (Gasoline)
60A
B+2
B+2
Inner Fuse Panel, IPS3 (H/LAMP HI RH,H/LAMP LOW RH, FRT TURN RH,POSITION
LAMP RH), IPS4 (FRT FOG LAMP LH/RH, REAR TURN LH/RH), IPS5 (REAR FOG LAMP,
INT TAIL LAMP)
FUSE
40A RR HTD RR HTD RELAY , RR HTD
40A IG1
W/O Smart Key : Ignition Switch
With Smart Key : IG1 RELAY, ACC RELAY,
INNER FUSE PANEL (FUSE No. - 8/13/21/23/28/29/35/36/37/38)
40A
DCT2
DCT2 TCU (DCT)
30A
1
EPB1 Electric Parking Brake Module
30A
2
EPB2 Electric Parking Brake Module
40A C/FAN C/FAN LO RELAY, C/FAN HI RELAY
Engine compartment main fuse panel (for gasoline engine MPI, GDI)
IG1
