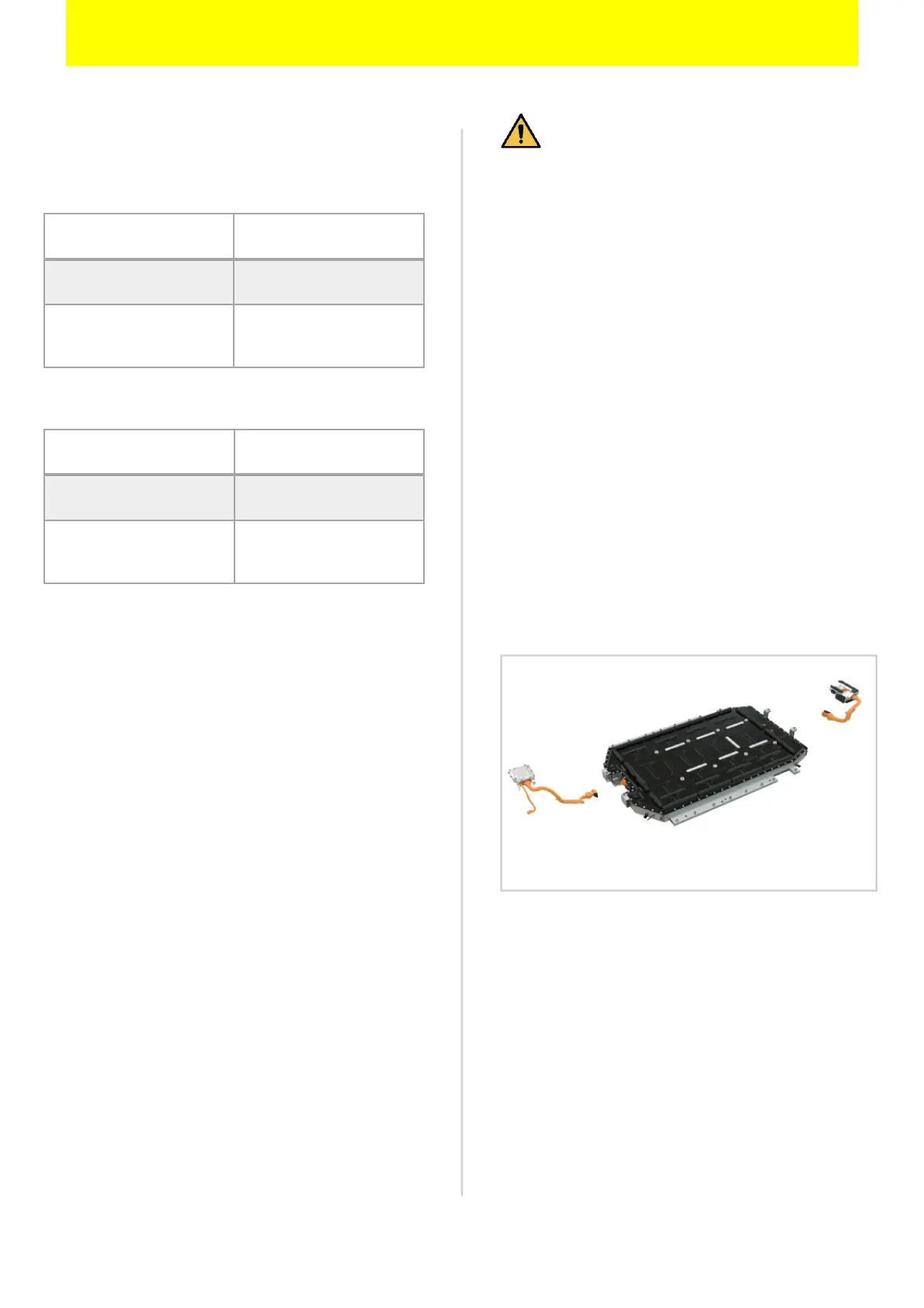

5. STORED ENERGY / LIQUIDS / GASES / SOLIDS
High-voltage Battery System
Standard
Long-range
5.2 High-voltage Orange Cabling
The high-voltage cabling is orange, per
Society of Automotive Engineer standards.
Cables run under the floor of the vehicle
and connect the High-voltage Battery to
the ICCU, Motor, Inverter, Junction box,
A/C compressor and Voltage components
located towards the front of the vehicle.
You can identify the vehicle as an electric
vehicle with the presence of orange the
hood, in the under-floor battery
compartment, or HV cables under the car.
WARNING
High-voltage Cables
• Never cut or disconnect the high-
voltage orange cabling and connectors
without first disabling the HV system by
removing the service interlock
connector. (refer to page 7)
• Exposed cables or wires may be
visible inside or outside the vehicle.
Never touch the metal chassis wires,
cables, connectors, or any electric
components before disabling the
system, and; or shorted to the vehicle
chassis.
Failure to follow these instructions will
lead to serious bodily injury or death by
electrical shock.
Capacity (kwh) 76.2
Rate Voltage (V) 636
Composition
174 cell
(29 module)
Kia EV9
Emergency Response Guide
16
Capacity (kwh) 99.8
Rate Voltage (V) 552
Composition
152 cell
(38 module)
