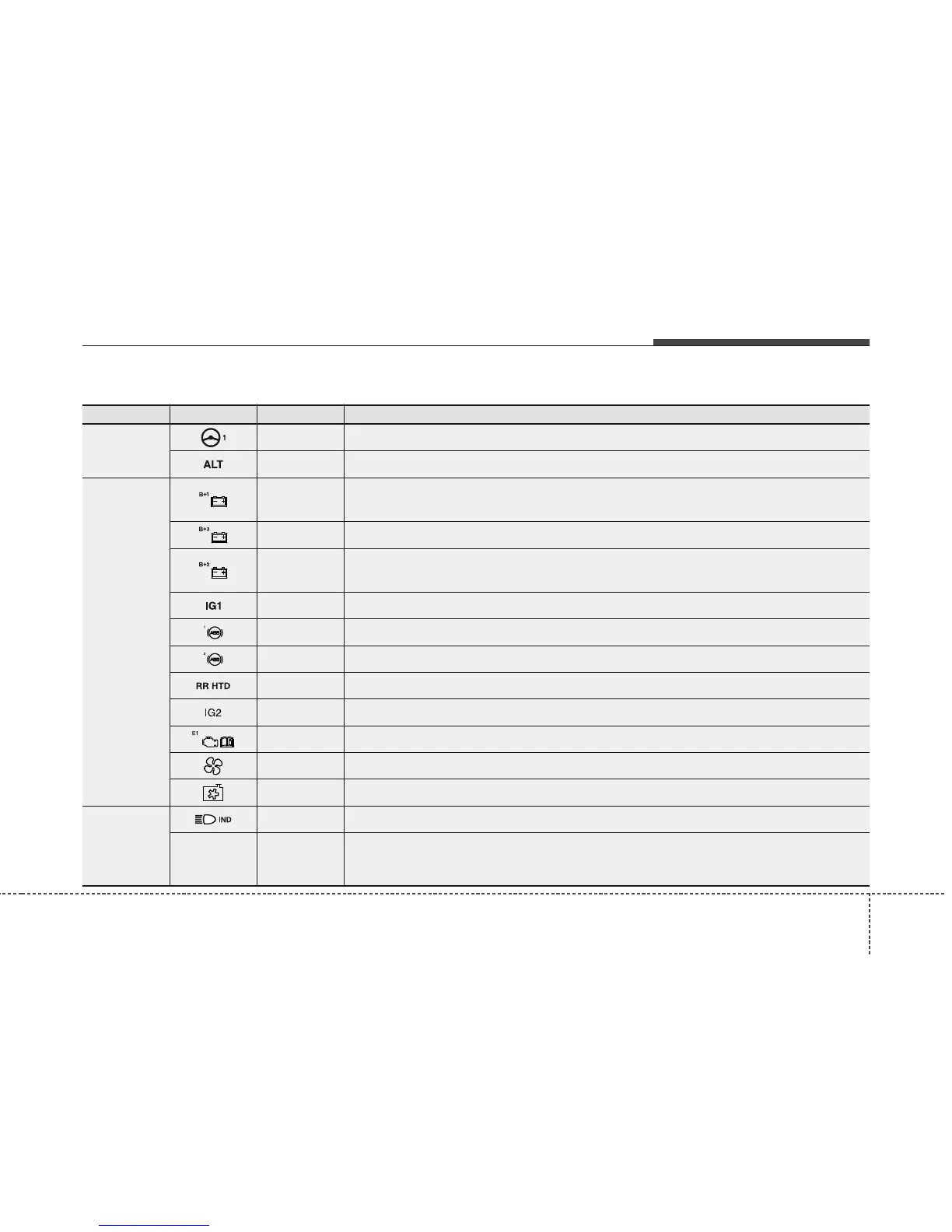

Kia Picanto 2016 - Engine Compartment Main Fuse Panel

765
Maintenance
Symbol Fuse rating Protected Component
MULTI FUSE
80A EPS Control Module
125A Alternator, PCB Fuse & Relay Box
FUSE
50A
I/P Junction Box (Power Connector Fuse : F1 10A / F2 20A,
Fuse : F24 10A / F25 10A / F26 10A / F27 15A, Tail Lamp Relay)
40A Projection Type : E/R Sub Fuse Box (Fuse : F1 10A / F2 20A / F4 15A / F5 10A / F7 10A )
50A
I/P Junction Box (Fuse : F8 20A / F9 25A / F10 15A / F16 15A / F17 25A / F18 15A / F19 10A
/ F35 10A, Power Window Relay)
40A E/R Junction Box (Fuse : F11 15A), Ignition Switch, PDM Relay Box (ESCL Relay)
40A ABS Control Relay, ESC Control Relay
30A ABS Control Relay, ESC Control Relay
40A Rear Defogger Relay
40A PCB Fuse & Relay Box (Start Relay), Ignition Switch, PDM Relay Box (ESCL Relay)
30A PCB Fuse & Relay Box (Engine Control Relay, Fuse : F23 10A)
40A PCB Fuse & Relay Box (Blower Relay)
40A PCB Fuse & Relay Box (Cooling Fan Relay)
FUSE
(General head
light type)
10A Instrument Cluster, Head Lamp RH, PCB Fuse & Relay Box (Head Lamp (HI) Relay)
2
FUEL PUMP
(FFV)
VACCUM PUMP
(EU K3 AT)
15A PCB Fuse & Relay Box (Fuel Pump #2 Relay)
Engine compartment main fuse panel
