AIR CLEANER
Filter replacement
It must be replaced when necessary,
and should not be washed.
You can clean the filter when inspect-
ing the air cleaner element.
Clean the filter by using compressed
air.
Main air cleaner
1.Lift the end of strip (1) up.
2.Press the fastener head with screw
driver and then pull the fastener
out.
3.Lift the rear portion of small service
cover (2) up and then remove the
service cover.
(A) : for assemble
(B) : for remove
4.Press the fastener head with screw
driver and then pull the fastener
out from main service cover (3).
5.Pull the main service cover over
7mm (0.28 in) to toward the front of
the vehicle.
6.Lift the main service cover up and
then remove the main service
cover. Be careful not to damage
the holder under the main service
cover.

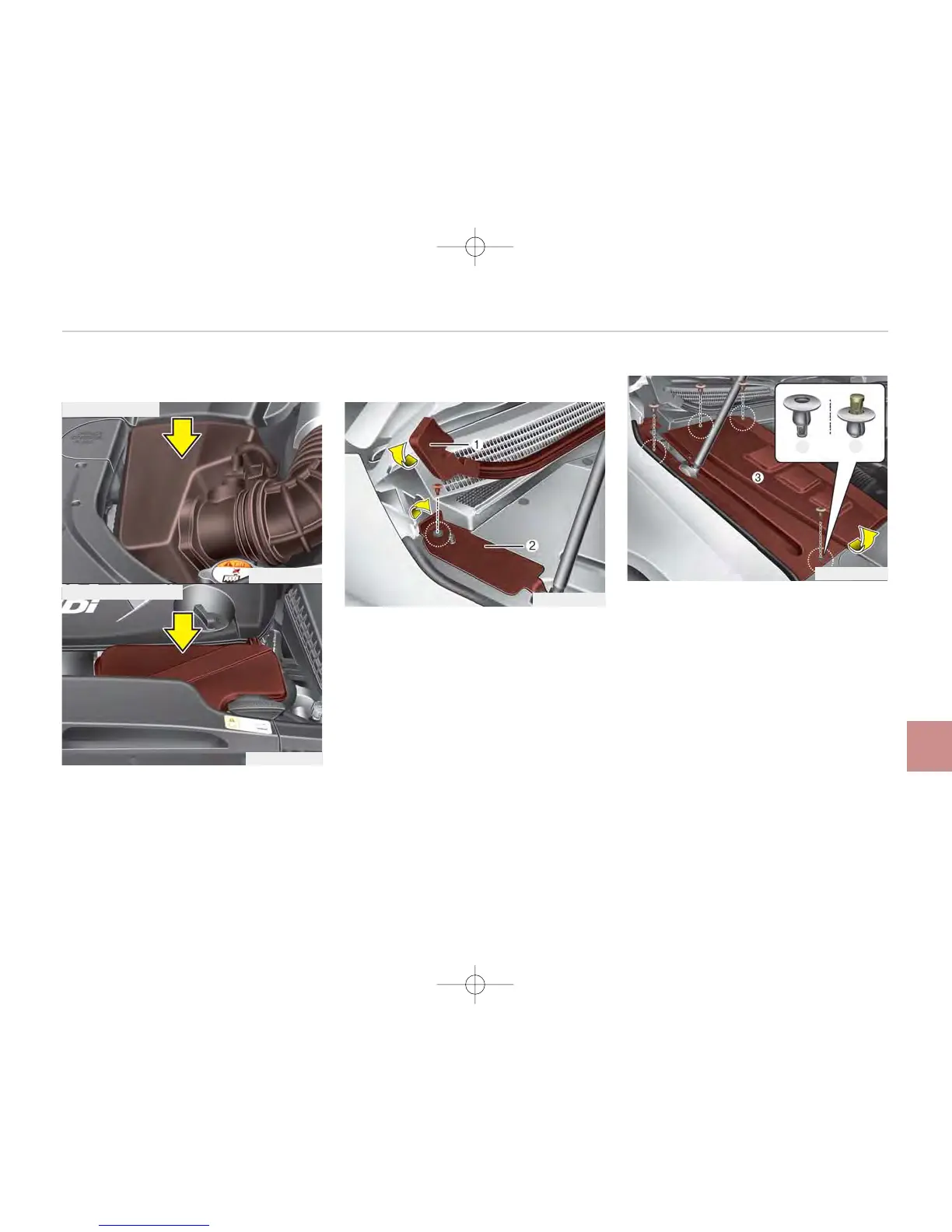

OKH073009N
OKH073010N
■ Main air cleaner
■ Chamber air cleaner
OKH073052N
OKH073051N
