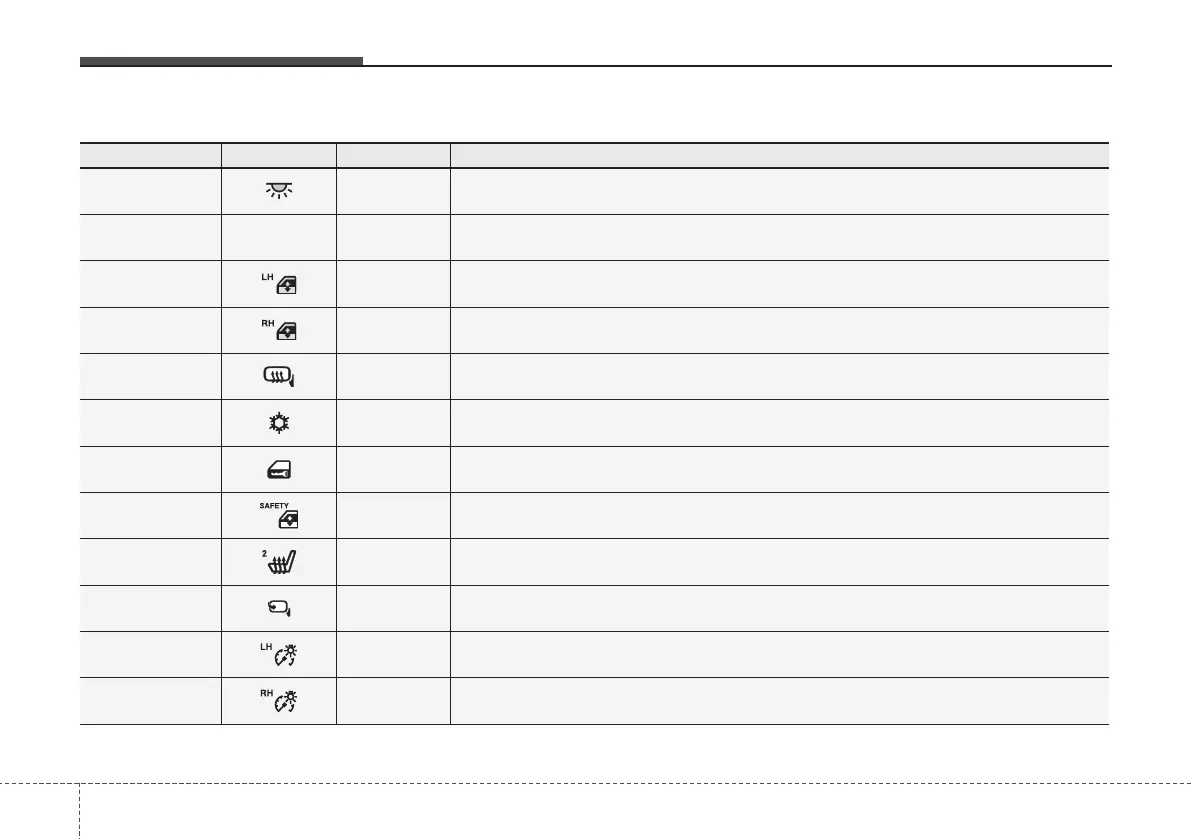

Instrument panel (Driver’s side fuse panel)
Fuse Name Symbol Fuse rating Protected Component
ROOM LP 10A
Tyre Pressure Monitoring Module, Instrument Cluster, Digital Clock, A/C Control Module,
Luggage Lamp, BCM, Door Warning Switch
AUDIO
AUDIO
20A
With ISG : Low DC-DC Convertor
W/O ISG : Audio, A/V & Navigation Head Unit
P/WDW LH 25A
Power Window Main Switch, Rear Power Window Switch LH,
Driver Safety Power Window Module
P/WDW RH 25A
Power Window Main Switch, Rear Power Window Switch RH,
Passenger Power Window Switch
HTD MIRR 10A ECM/PCM, A/C Control Module
A/CON 10A A/C Control Module
DR LOCK 20A
Door Lock/Unlock Relay, Tail Gate Unlock Relay,
Dead Lock Relay
SAFETY
POWER WINDOW
25A Driver Safety Power Window Module
S/HEATER 2 15A Seat Warmer Switch, Driver/Passenger Seat Warmer
FOLD'G MIRR 10A Power Outside Mirror Switch
TAIL LP LH 10A Jumper Wire 3, Head Lamp LH, License Lamp, Rear Combination Lamp (IN/OUT) LH
TAIL LP RH 10A Head Lamp RH, License Lamp, ILL. (+), Rear Combination Lamp (IN/OUT) RH
