781
Maintenance

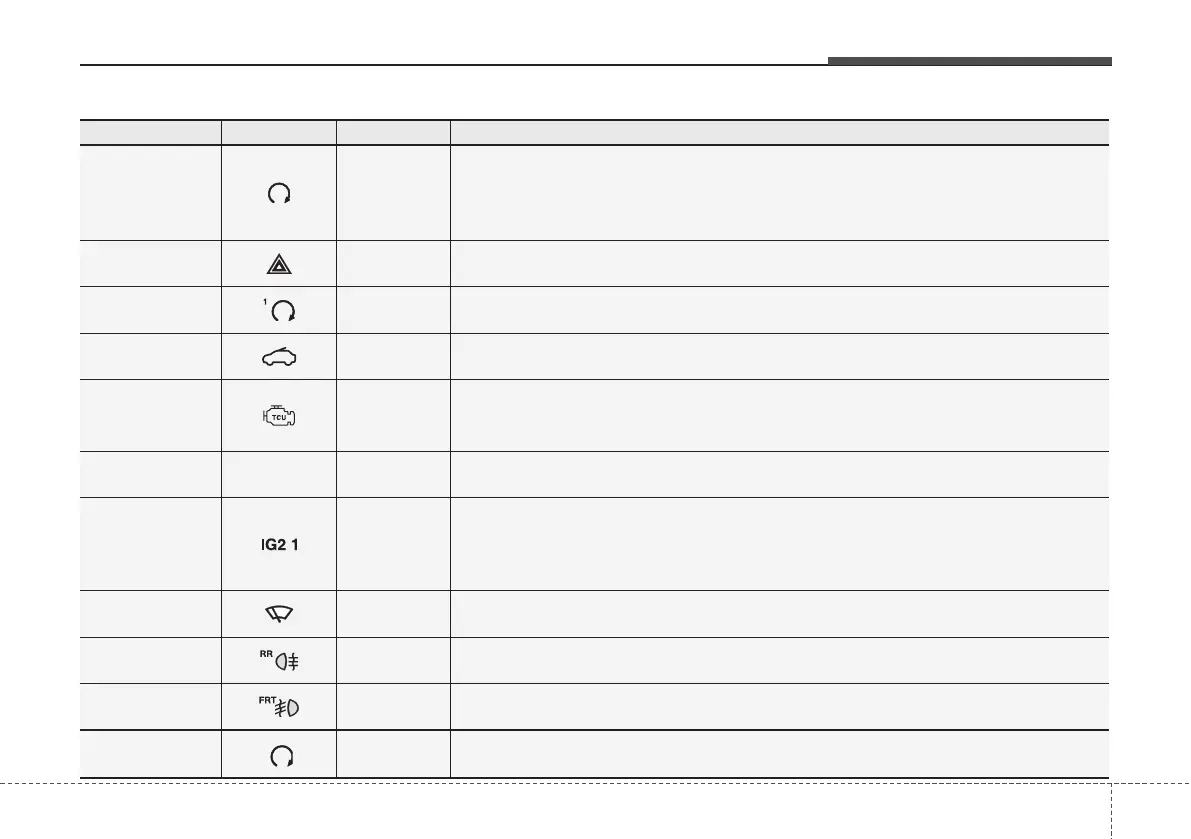

Fuse Name Symbol Fuse rating Protected Component
START 10A
With Burglar Alarm : Burglar Alarm Relay
W/O Burglar Alarm : Transaxle Range Switch (A/T), Smart Key Control Module (M/T),
ECM (M/T), Ignition Lock Switch (M/T),
PCB Fuse & Relay Box (Start Relay) (M/T)
HAZARD 15A Hazard Relay, Hazard Switch, BCM
PDM_1 25A Smart Key Control Module
SUN ROOF 15A Sunroof Motor
TCU 15A
Smart Key Control Module, Immobiliser Module,
DSL : PCB Fuse & Relay Box (Start Relay), ECM, Mass Air Flow Sensor
GSL : ECM/PCM, Transaxle Range Switch
IGN COIL
IGN COIL
15A Ignition Coil, Condenser
IGN2 I 10A
Head Lamp Levelling Device Switch, BCM, Rain Sensor, Smart Key Control Module,
A/C Control Module, Sunroof Motor, Head Lamp Levelling Device Actuator LH/RH,
Diesel Box (PTC Heater Relay #2, #3), PCB Fuse & Relay Box (Blower Relay,
Head Lamp (HI) Relay, Jumper 1)
WIPER FRT 25A
Multifunction Switch, Front Wiper Motor, PCB Fuse &
Relay Box (Rain Sensor Relay, Front Wiper Relay)
FOG LP RR 10A Rear Fog Lamp Relay
FOG LP FRT 15A Front Fog Lamp Relay
PDM_2
2
10A Smart Key Control Module (or Immobiliser Module), Start/Stop Button
