AIR CLEANER
Element Replacement
A viscous paper air cleaner filter is used. It must be
replaced when necessary, and should not be
cleaned and reused.

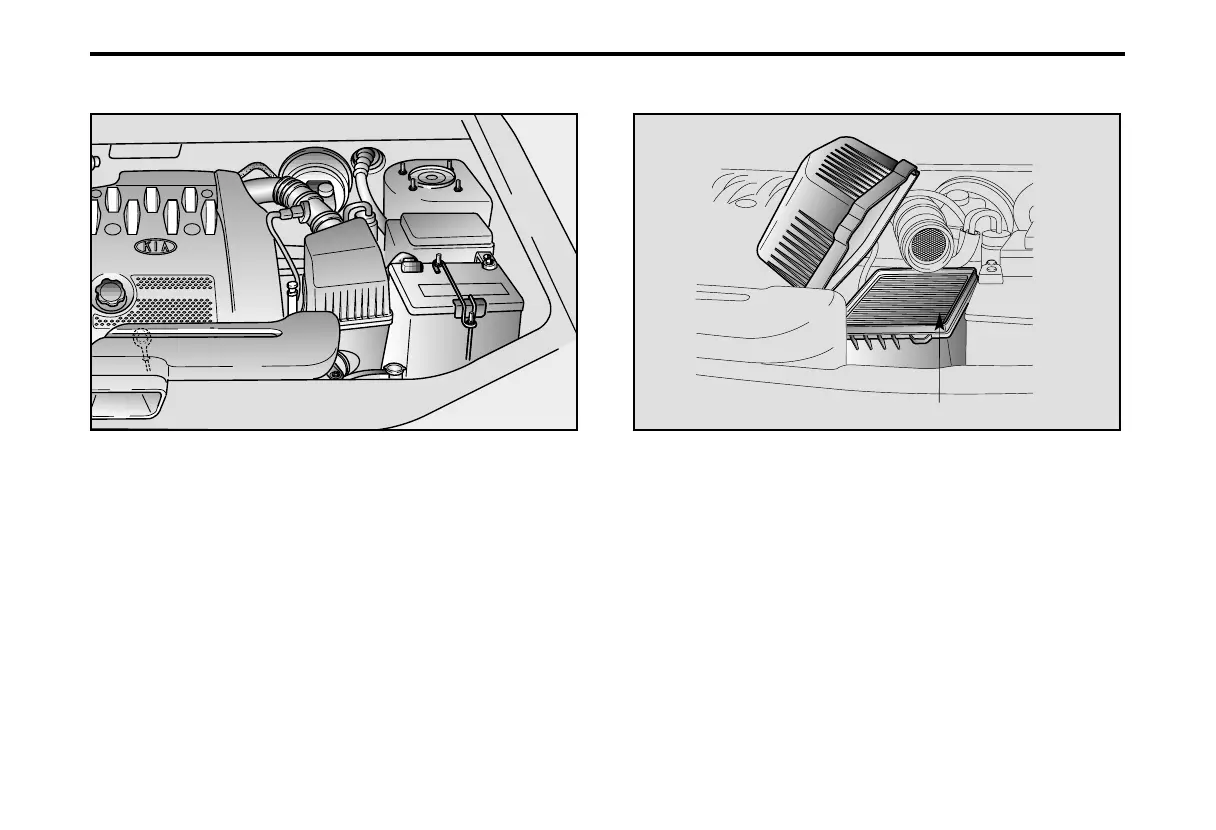

1. Loosen the air clamp and remove the intake air
hose.
2. Remove the four (4) cover bolts on the air
cleaner cover and remove the cover.
Maintenance
7-34
CGQ07107
3. Wipe the inside of the air cleaner housing with a
damp cloth.
4. Replace the air cleaner element.
5. Install the cover. Install and tighten the (6) cover
bolts.
CGQ06007
Air cleaner element
