ASSEMBLY INSTRUCTIONS
5 6

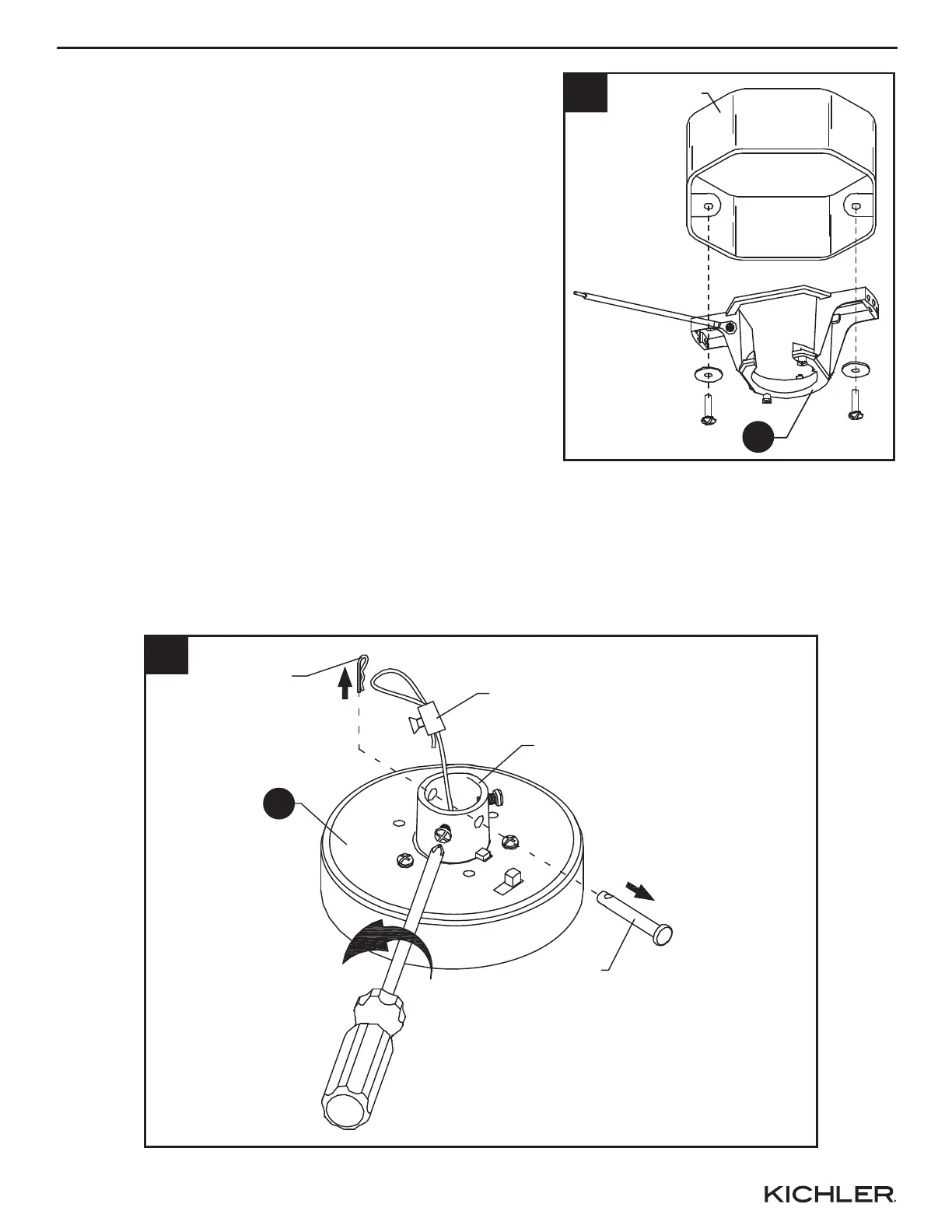

1. Secure the hanging bracket (A) to the ceiling outlet
box using hanging bracket screws and hanging
bracket washers.
Important: If attaching the fan to a sloped ceiling,
make sure open end of mounting bracket is installed
facing the roof. Do not install fan on a ceiling with a
pitch greater than 20°.
1
A
Outlet Box
2. Loosen the set screws found on coupling on top of the motor assembly (F). Then remove the hair
and clevis pin that will be used on a later step.
Hair Pin
Safety Cable
Clevis Pin
2
F
Coupling
To Next Page
