7
ASSEMBLY INSTRUCTIONS
6

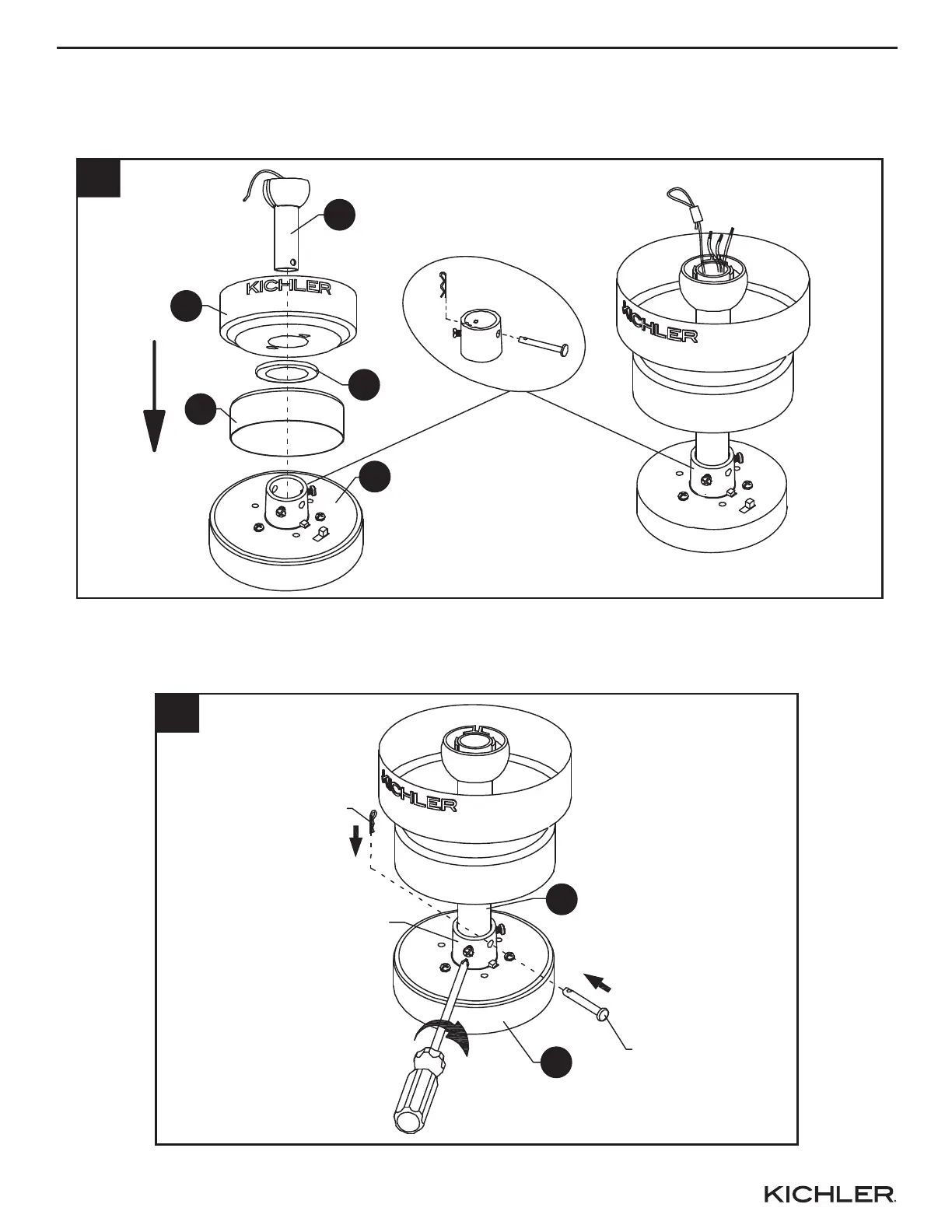

3. Insert down rod (B) through canopy (C), canopy hole cover (I), and motor coupling cover (E).
Feed wires from the motor assembly (F) through the down rod (B), then insert the down rod (B)
into the coupling found on top of the motor assembly (F).
4. Pass the clevis pin through the down rod (B) and coupling found on the motor assembly (F) then
secure with the hair pin. Tighten set screws found on the coupling on the motor assembly (F).
Hair Pin
Clevis Pin
Coupling
B
F
4
F
I
C
E
B
3
