Kichler Lighting Starkk - Motor Body and Downrod Assembly; Canopy and Hanger Ball Seating

8 | KICHLER.COM
HANGING THE FAN (continued)

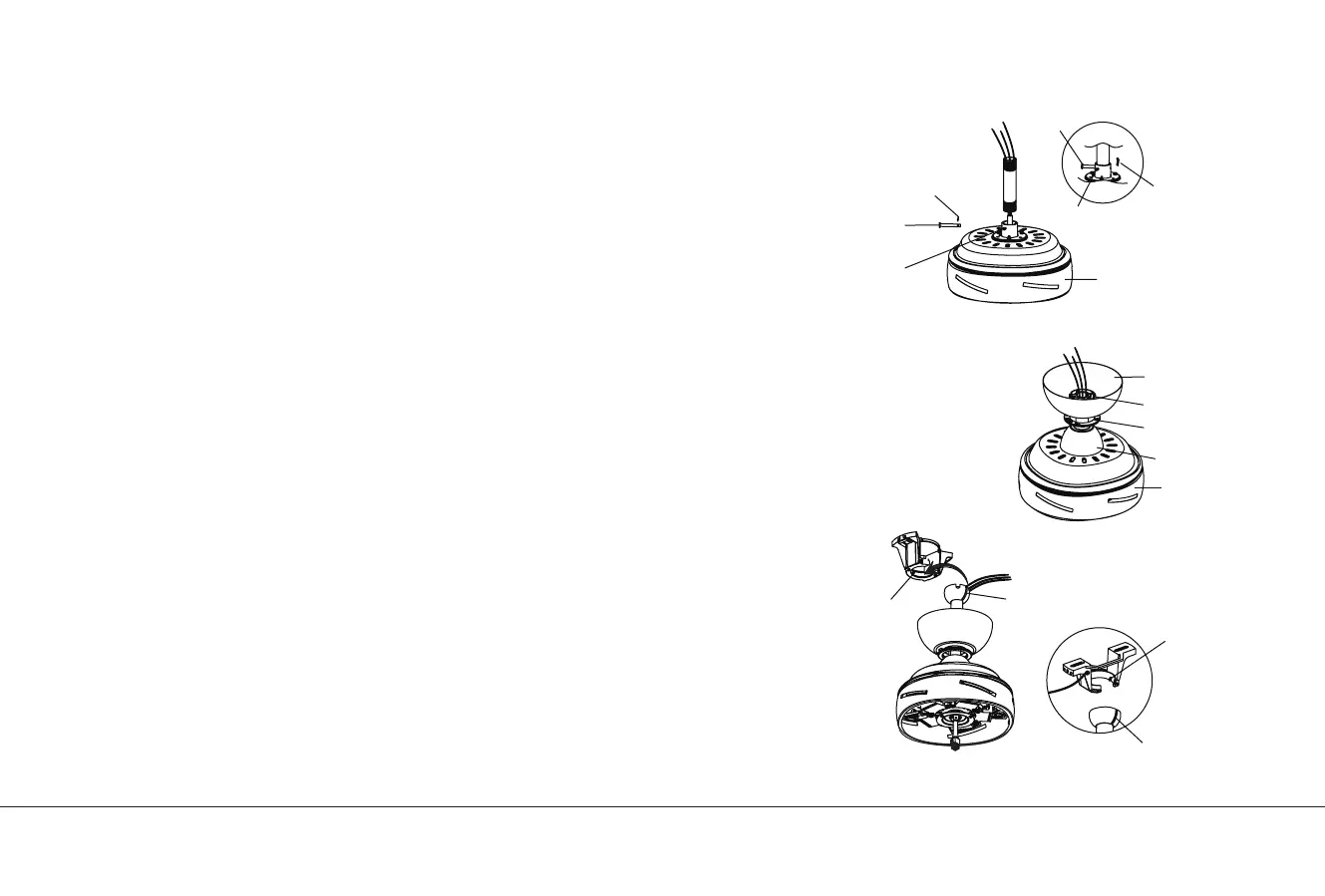

Step 4. Loosen the two set screws and remove the clip and cross pin from the top
coupling of the motor body.Carefully feed the fan wires up through the downrod.
Thread the downrod onto the motor coupling until the cross pin holes are aligned.
Next, replace the cross pin and clip, and tighten both set screws. (Fig.8)
Step 5. Slip the coupling cover, canopy trim ring and canopy onto the downrod.
Carefully reinstall the hanger ball onto the downrod. Make sure the cross pin is
in the correct position and the set screws are tight and the wires are not twisted.
(Fig.9)
Step 6. Now lift the motor body into position and place the hanger ball into the
hanger bracket. Rotate until the “Check Tab” has dropped into the “Registration
Slot” and seats firmly. (Fig.10) The entire motor body should not rotate if this is
done correctly.
WARNING: Failure to properly seat the “Check Tab” can damage the ceiling fan
during operation.
Cross Pin
Clip
Clip
Set Screw
Cross Pin
Set Screw
Motor Body
Fig. 8
Fig. 9
Fig. 10
Canopy
Hanger Ball
Canopy Trim Ring
Coupling Cover
Motor Body
Mounting
Bracket
Hanger
Ball
Registration Slot
Check Tab
