Kichler Lighting Starkk - Hanging the Fan; Securing the Mounting Bracket; Downrod and Hanger Ball Prep

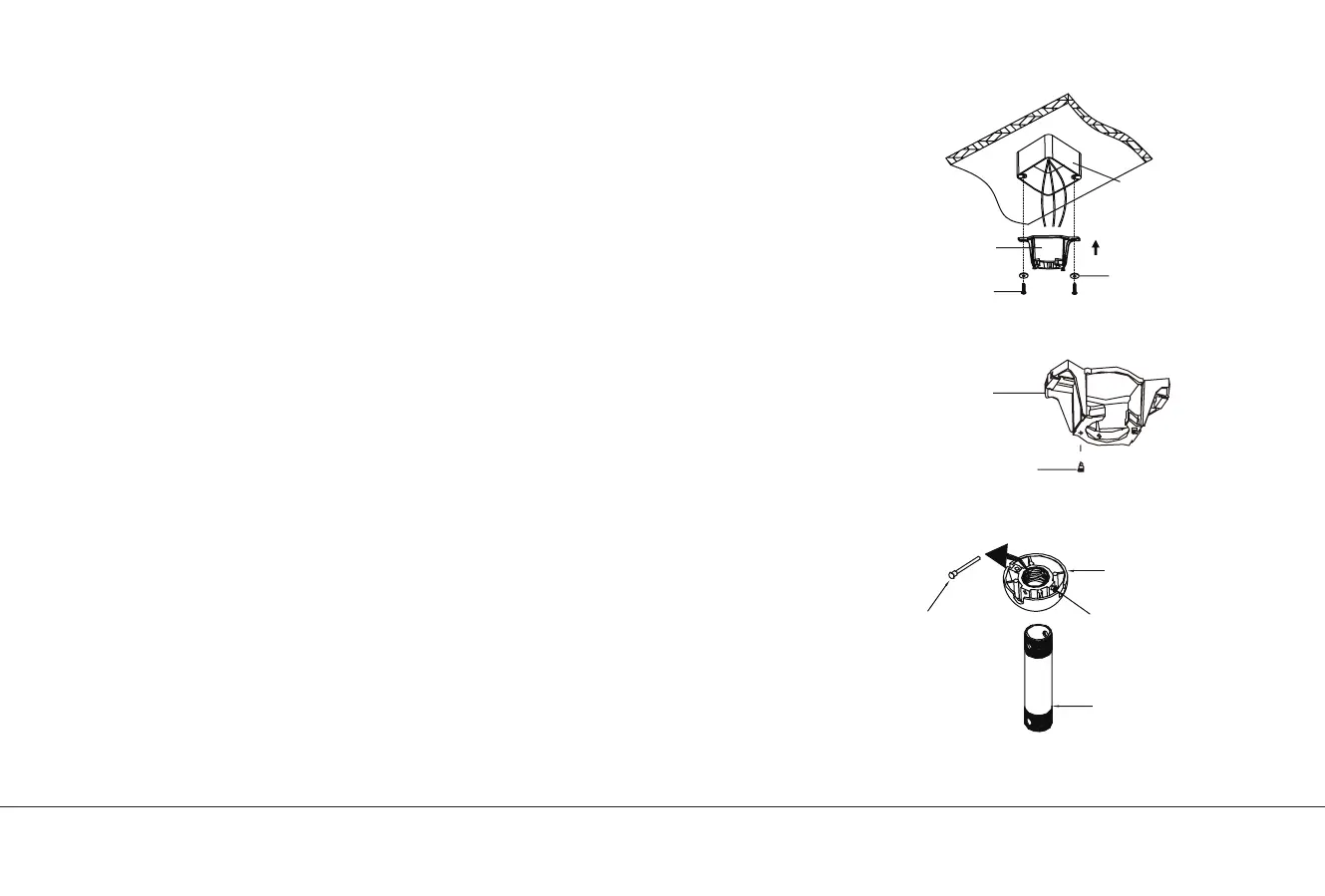

Fig. 5
Fig. 6
Fig. 7
Outlet Box
Mounting
Bracket
Flat Washer
Screw
Mounting
Bracket
Shoulder
Downrod
Set Screw
Hanger Ball
Cross Pin
HANGING THE FAN
REMEMBER to turn o the power before you begin installation. This is necessary for
your safety and also the proper programming of the control system.
To properly install your ceiling fan, follow the steps below.
Step 1. Before attaching fan to outlet box (not included), ensure the outlet box is securely
fastened to at least two points to a structural ceiling member (a loose box will cause the
fan to wobble). Pass the 120 volt supply wires from the ceiling outlet box through the
center of the ceiling mounting bracket. Install mounting bracket to outlet box in ceiling
using the screws and washers included with the outlet box. (Fig. 5)
Step 2. Remove one of the two shoulder screws in the mounting bracket and save it for
later use. Loosen the second shoulder screw without fully removing it. (Fig. 6)
Step 3. Remove the hanger ball from downrod assembly by loosening set screws,
removing the cross pin, and twisting ball o the rod. ( Fig. 7)
