7
KX AMPLIFIERS
Installation

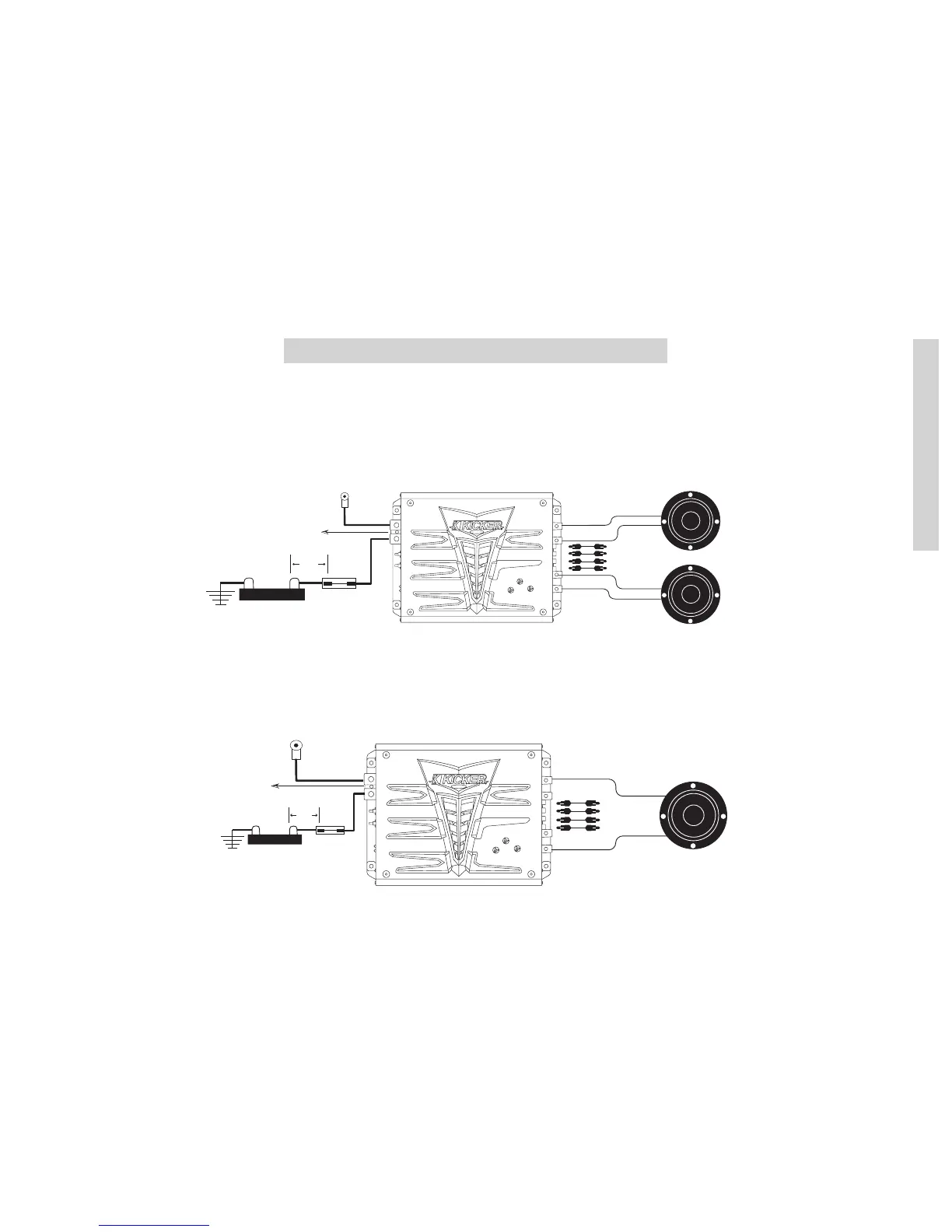

System Diagram
The following diagrams show the most common configurations for your Kicker
KX series amplifier.
TWO CHANNEL OPERATION (STEREO)
KX.2 series amplifiers are capable of operating into a minimum impedance of
2 ohms per channel in stereo operation.
SIGNAL IN
SIGNAL OUT
RIGHT SPEAKER(S)
LEFT SPEAKER(S)
+
_
+
_
GROUND
REMOTE
TURN-ON
BATTERY
+12V
FUSE
18"
or less
R -
R+
L -
L+
BRIDGED OPERATION (MONO)
KX.2 series amplifiers are capable of operating into a minimum impedance of
4 ohms when in bridged operation.
GROUND
REMOTE
TURN-ON
BATTERY
+12V
FUSE
SIGNAL IN
SIGNAL OUT
L+
L
-
R+
R
-
_
+
MONO
SPEAKER(S)
18"
or less
