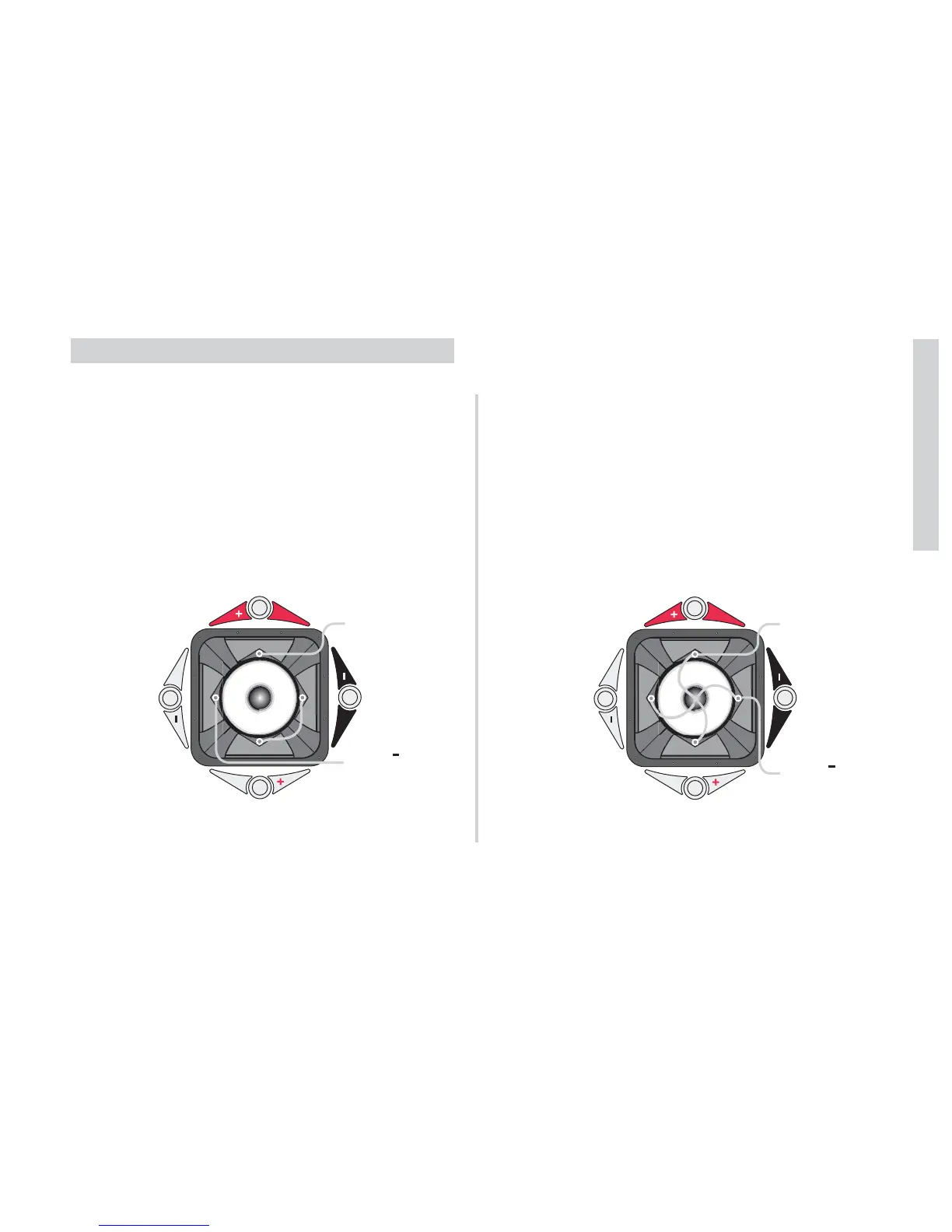

The terminals with red and black wings are for one voice coil. The
terminals with the silver colored wings are for the second voice coil.
Due to the nature of this subwoofer care must be taken when con-
necting the wires to the proper terminals!
3
SoloX Subwoofer
Wiring
Wiring
The SoloX woofers are available with dual 2 Ohm or dual 1 Ohm
voice coils. Both coils should always be hooked up.
The dual 2 Ohm woofer will give you a 1 Ohm or a 4 Ohm load
depending on if the coils are wired in parallel or in series. The dual 1
Ohm woofer will give a .5 Ohm or 2 Ohm load depending on how they
are wired.
