11 Dual Zone Digital Location Control Unit Installation and Operation Manual
Caution: As the system uses one control unit, the total combined area coverage
of both Digital LHD zones cannot exceed the maximum detection zone size as
defined by local standards (refer to your local standards).

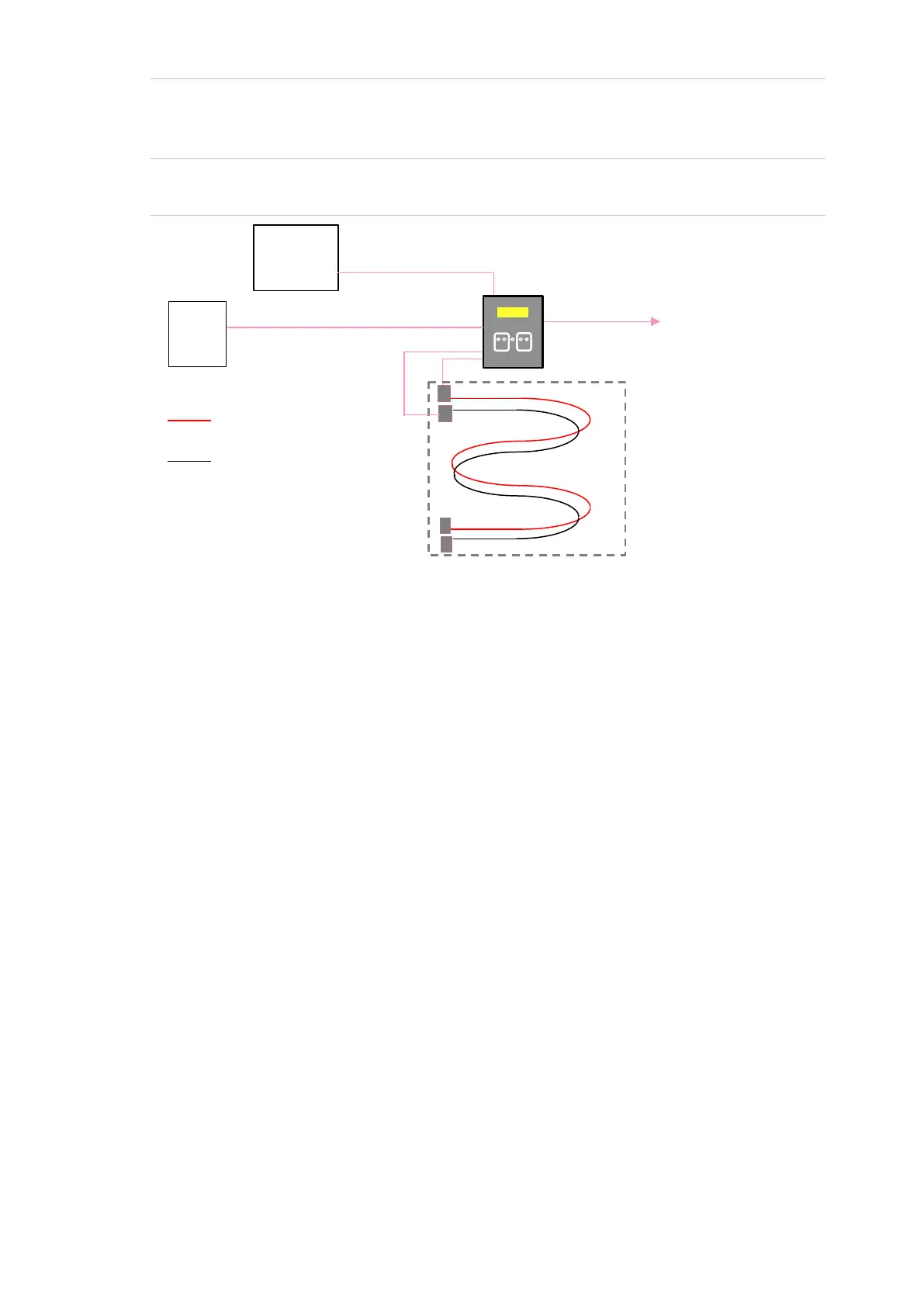

Figure 6: Interlock mode
24 VDC
PSU
Interposing cables
Fire Alarm
control panel
RS-485 Modbus output
Status signals
zone 1
Risk area
Sensor cable LHD zone 1
Sensor cable LHD zone 2
