Kidde VM-1 - Page 110

Chapter 5: Installation
102 P/N 3101890-EN • REV 006 • ISS 21JUN18

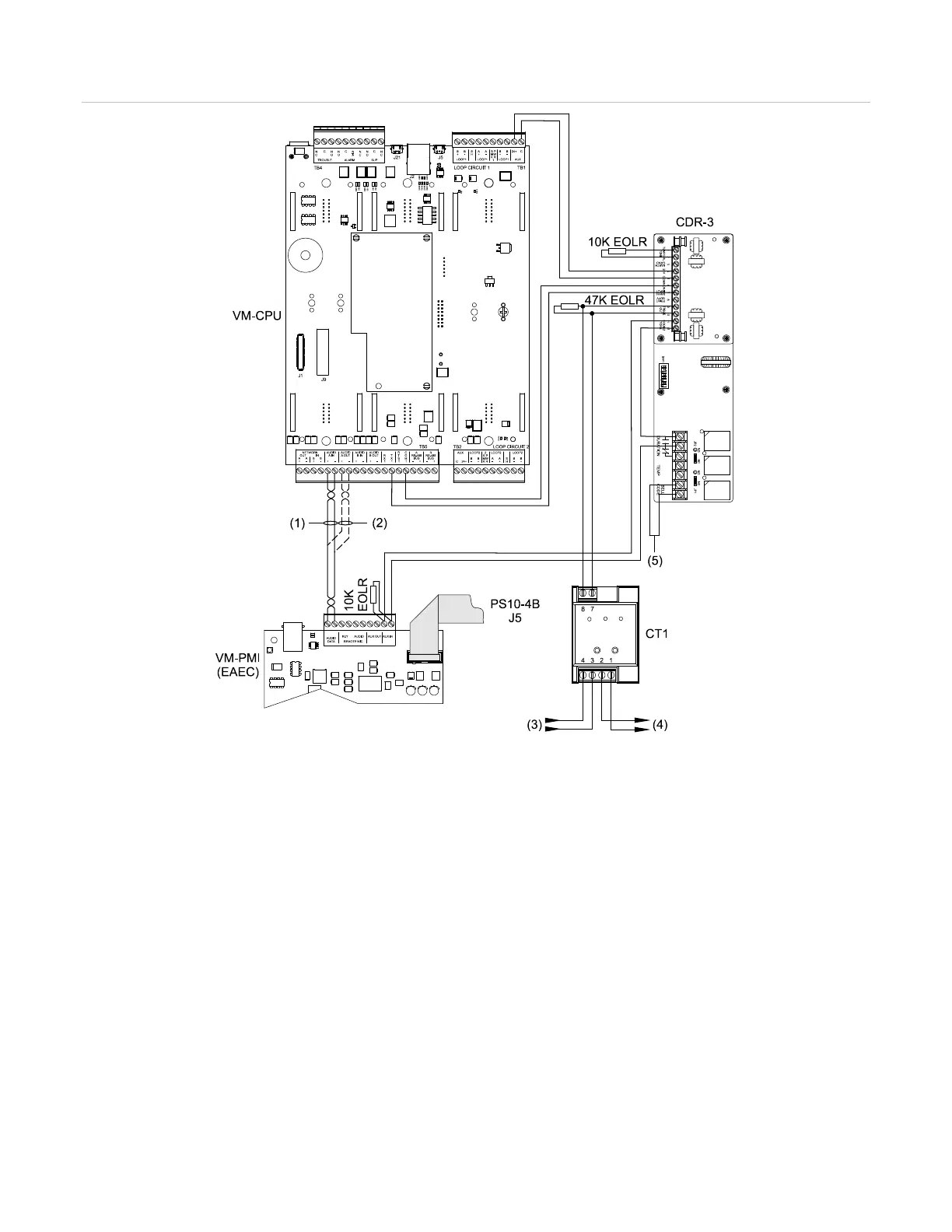

Figure 34: CDR-3 wiring for coded tone output
(1) Network option card installed
(
2) Network option card not installed
(3) From V-Series controller or previous device
(4) To next device
(5) For CDR-3 control of notification appliance circuits
