Kidde VM-1 Technical Reference Manual

Chapter 5: Installation
P/N 3101890-EN • REV 006 • ISS 21JUN18 103

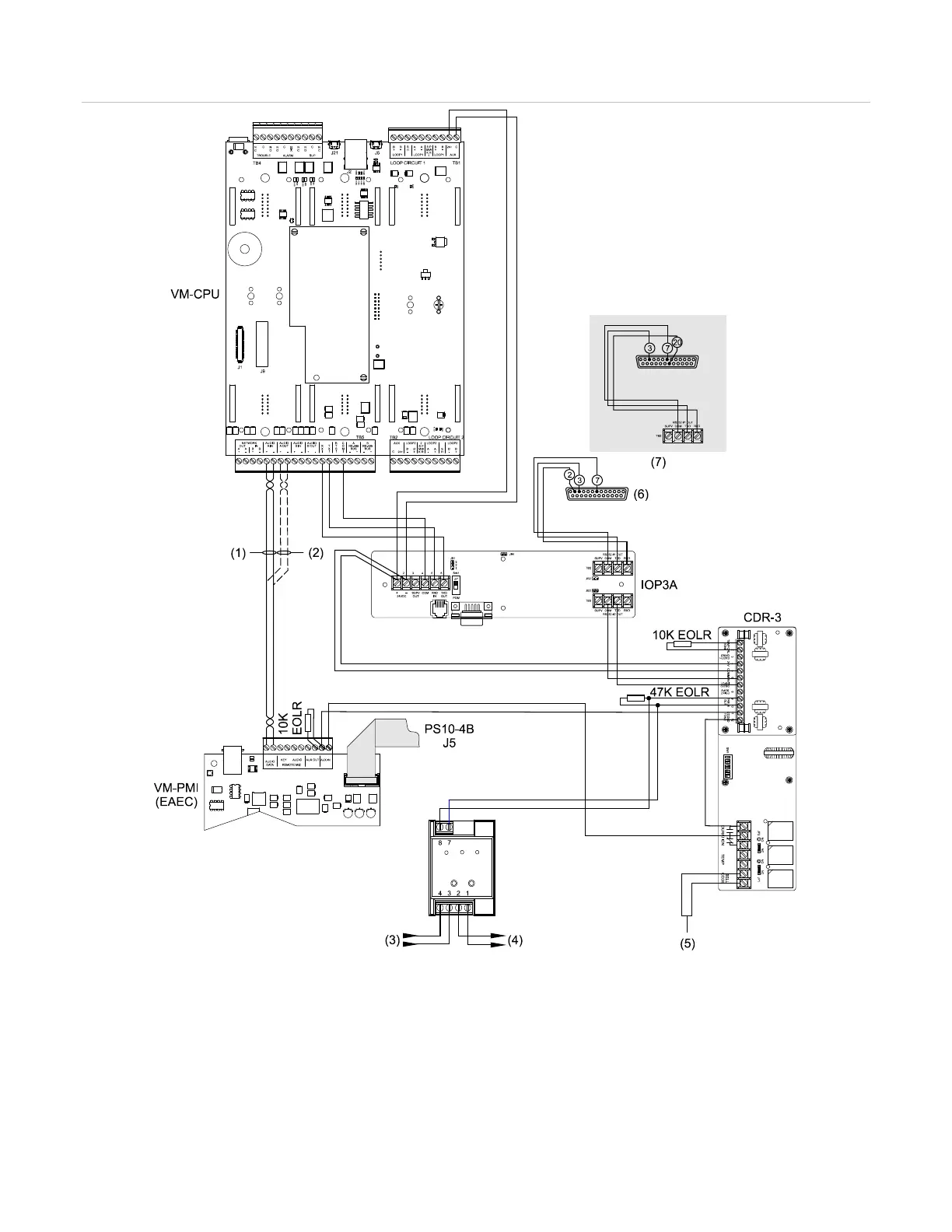

Figure 35: Combined CDR-3 and IOP3A wiring for an MIR-PRT/S printer application
(1) Network option card installed
(
2) Network option card not installed
(
3) From V-Series controller or previous device
(
4) To next device
(5) For CDR-3 control of notification appliance circuits
(6) DB-25 male connector to unsupervised
MIR-PRT/S printer (front view)
(7) DB-25 male connector to supervised
MIR-PRT/S printer (front view)
