LED model remote annunciator and expander controls and indicators

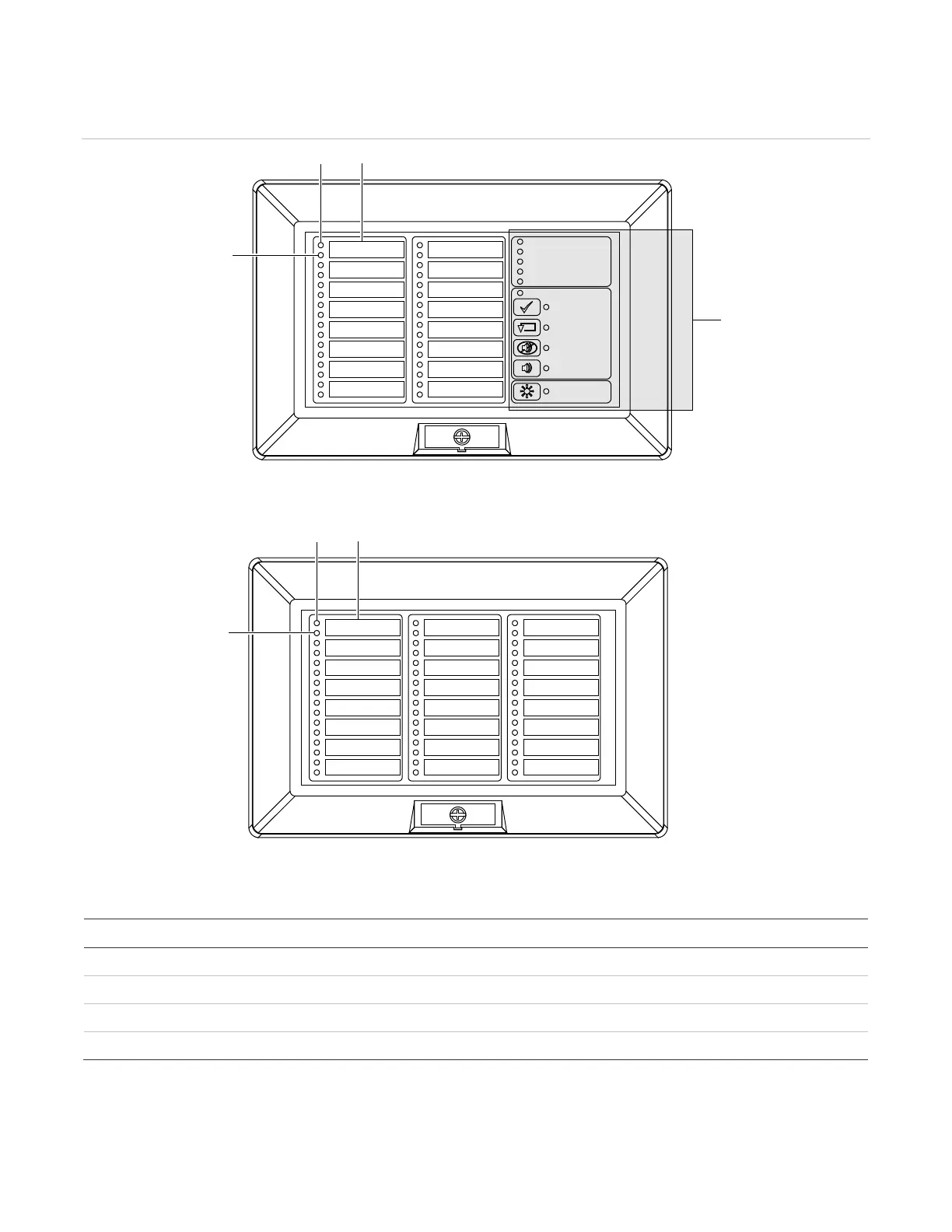

Figure 19: LED model remote annunciator and expander controls and indicators
Note: Item 4 is excluded from the LED24 / K-RLED24.
Table 26: LED model remote annunciator and expander controls and indicators
Item
Item Description
1
Zone description label User-defined zone or device description
2
Active LED Red LED indicates the zone or device is in alarm state
3
Trouble LED Yellow LED indicates the zone or device is in trouble state
4
Controls and indicators [1] See items 5 through 15 in Table 25 on page 69
[1] Controls and indicators are not on the RLED24 or K-RLED24 remote expander.
RLED-C / K-RLED-C
RLED24 / K-RLED24
Controls Enabled
Ack/Silence
Reset
Signal Silence
Drill
Lamp Test
Power
Fire Alarm
Supervisory
Ground Fault
Trouble
(1)
(1)
(2)
(2)
(3)
(3)
(4)
