Kidzone JC111B - Assembly: Front Axle Setup; Front Axle Assembly Steps

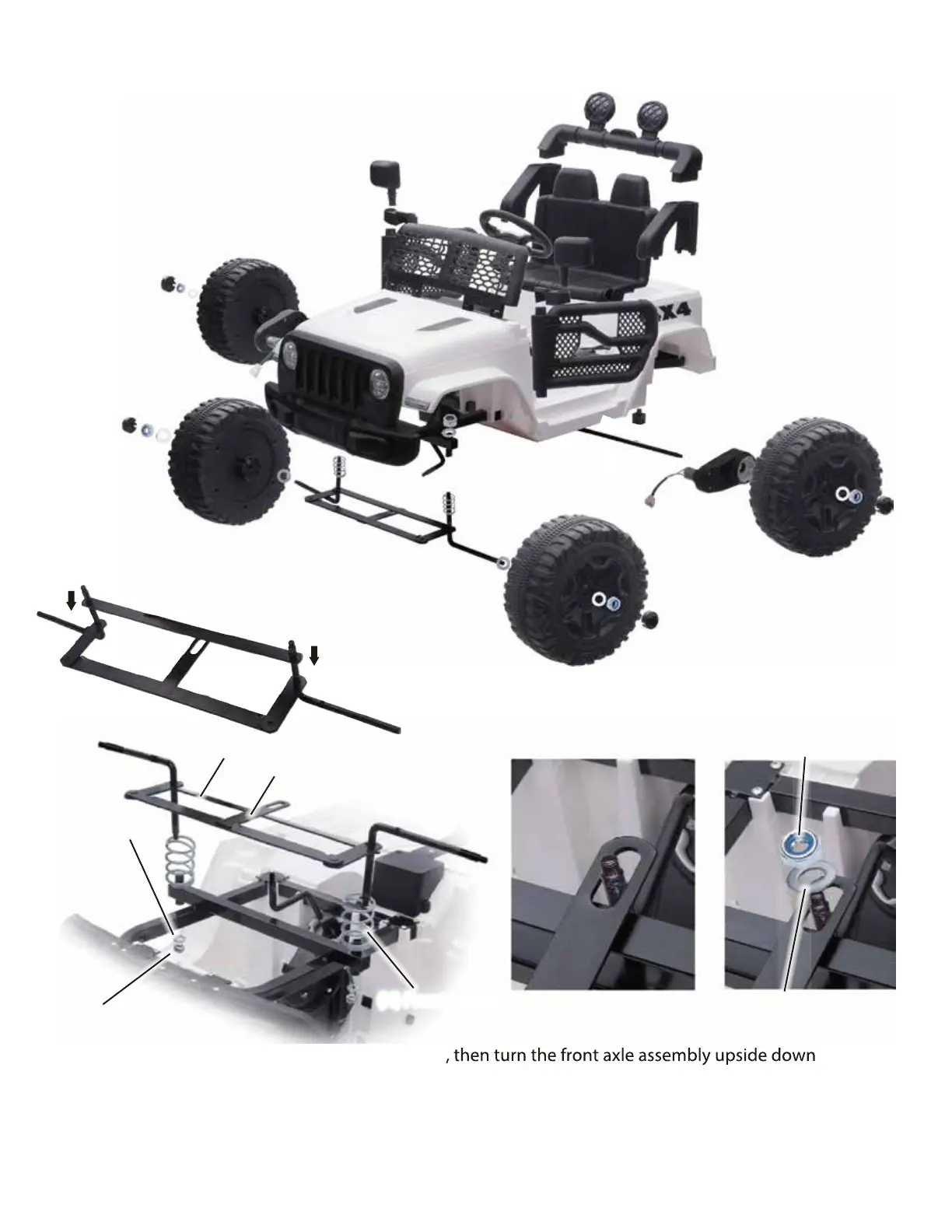

Assembly Instruction (The following diagrams for reference only, the photos may vary from
• Assemble the Flat Iron (V ) to the Front Axle(Q)
.
• Insert Front Spring (M) on the square tube, then insert the Front Axle (Q) assembly to the hole on the side
of the square tube.
• Assemble the tie rod of the Front Axle to the Steering rod and tighten with Small Washer (X) and Nut (S).
• Then secure the front axle assembly on the square tube with Small Washer(X) and Nut(S) ( the small
washers and nuts were pre-installed on the front axle).
( V ) Flat Iron
(Q) Front Axle
(M) Front Spring
(X) Small Washer
(S) Nut
(X) Small Washer
(S) Nut
Attach the Flat Iron
as arrow. then turn
the whole front axle
assembly upside down
10
actual product.)
