Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part 2700494 Revision -
Assembly Instructions
Fixed Wood Modesty Panel to
Worksurface Assembly
Tools Required
Cordless driver with magnetic post
#2 Phillips Head Bit Drive
#3 Phillips Head Bit Drive
Hardware Required (Included)
Modesty Sizes 24”
48”
60”
72”
84”
96”
L Bracket 2 3 4
#12 x 5/8” FBSCR 4 6 8
#10 x 1” FBSCR 4 6 8
Installation
1. Unpack modesty panel, L bracket, and hardware. See Fig-
ure A for package contents.
2. Place L bracket over pre-drilled holes and assemble with
#12 X 5/8” wood screws using #2 Phillips head drive. See
Figure B.
3. Place the worksurface up side down on a non-marring sur-
face.
4. Using a tape measure, position the modesty panel from the
approach side of the worksurface 1” in and predrill using
1/8” bit.
5. Assemble with #10 X 1” FBSCR wood screws using #3
Phillips bit drive. as shown in Figure C. Flip the worksur-
face back over onto the bases.

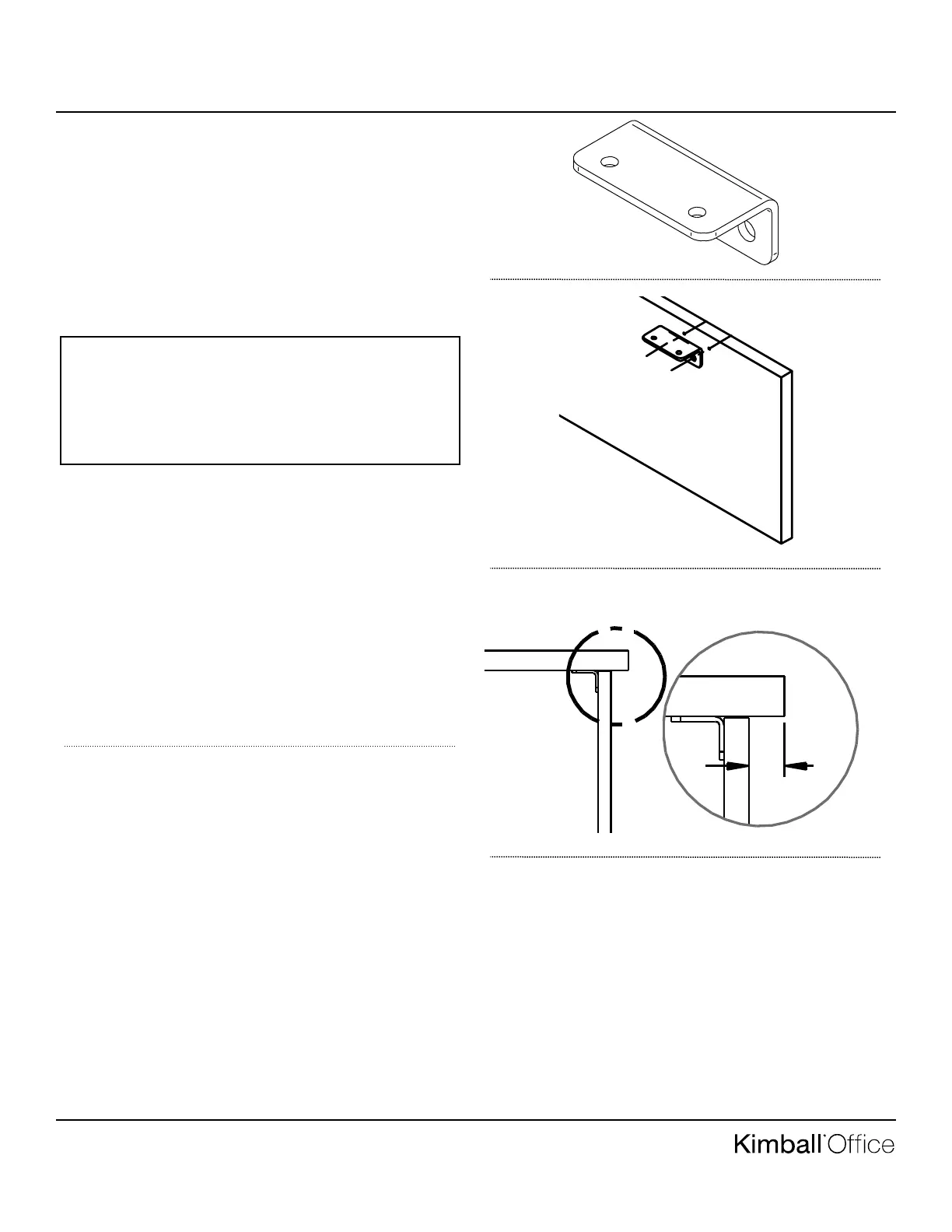

Figure A
Figure B
Figure C
