Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part 2700494 Revision -
Assembly Instructions

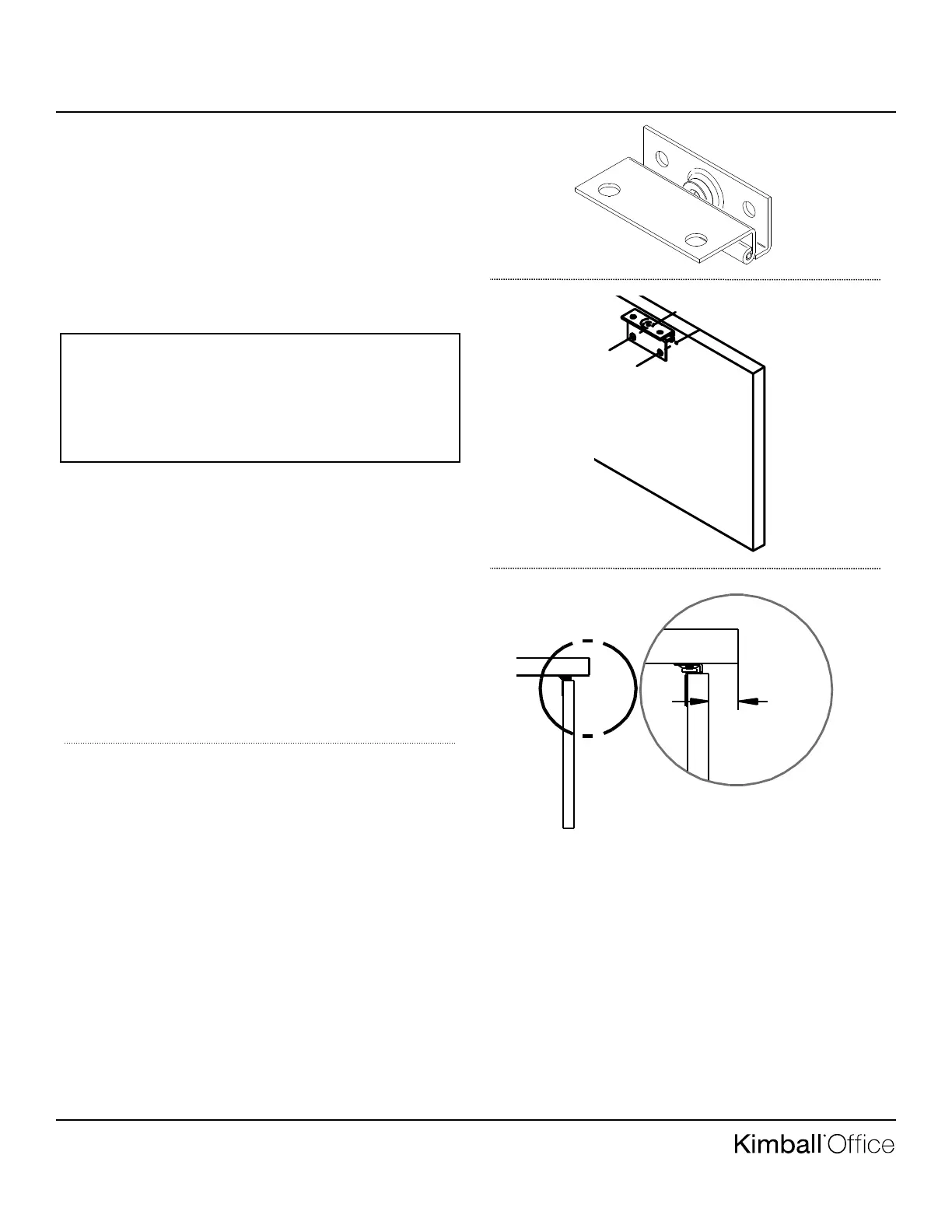

Figure A
Flip/Nest Wood Modesty Panel
to Worksurface Assembly
Tools Required
Hardware Required (Included)
Cordless driver with magnetic post
#2 Phillips head bit drive
#3 Phillips head bit drive
1. Unpack modesty panel and hardware. See Figure A for
package contents.
2. Place the worksurface up side down on a non-marring sur-
face.
3. Attach magnetic hinge to modesty panel with #12 X 5/8”
wood screws using #2 Phillips head bit drive.
4. Using a tape measure, position the modesty panel from the
approach side (non user side) of the worksurface 1” in and
predrill as shown in figure C.
5. Place removable bracket over the L bracket and assemble
worksurface through pre-drilled holes with #10 X 1”
FBSCR using #3 Phillips head bit drive as referenced in
figure B. Flip the worksurface back over onto the bases.
Installation
Modesty Sizes 24”
48”
60”
72”
84”
96”
Magnetic Hinge 2 3 4
#12 X 5/8” FBSCR 4 6 8
#10 X 1” FBSCR 4 6 8
Figure B
Figure C
